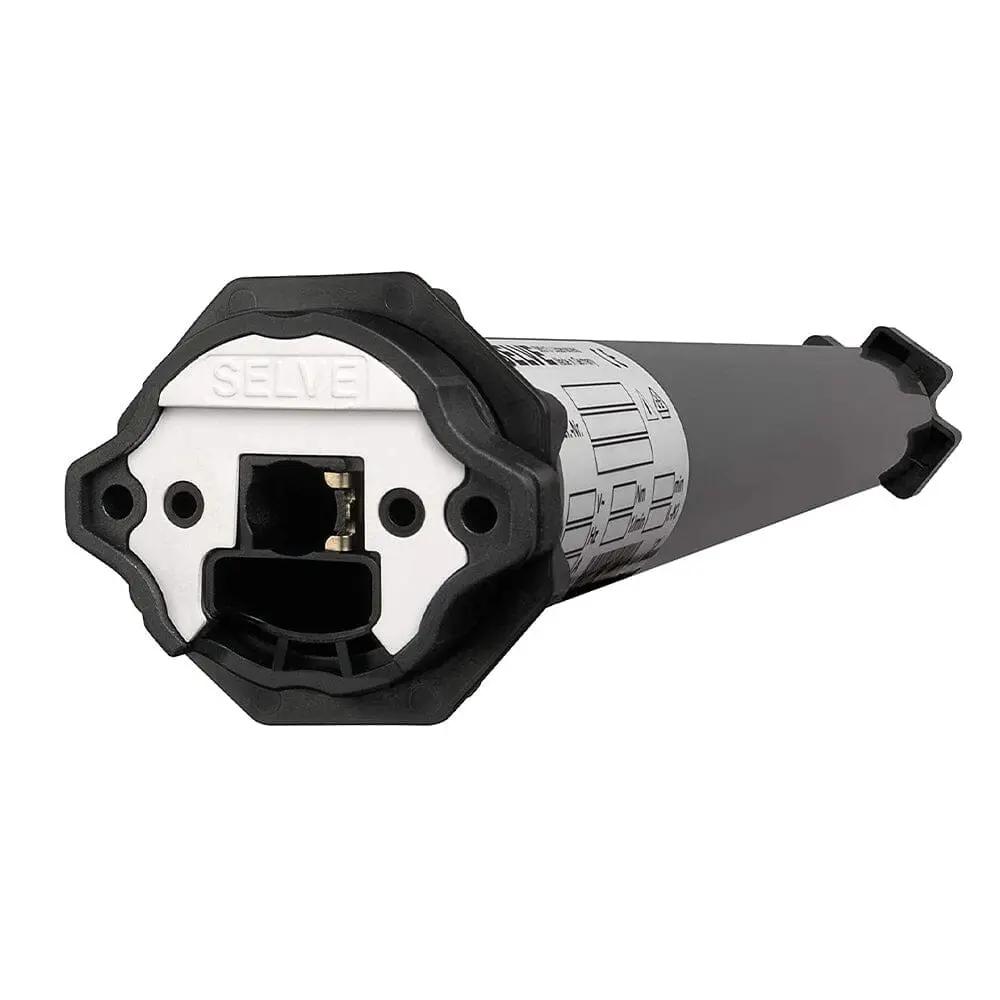

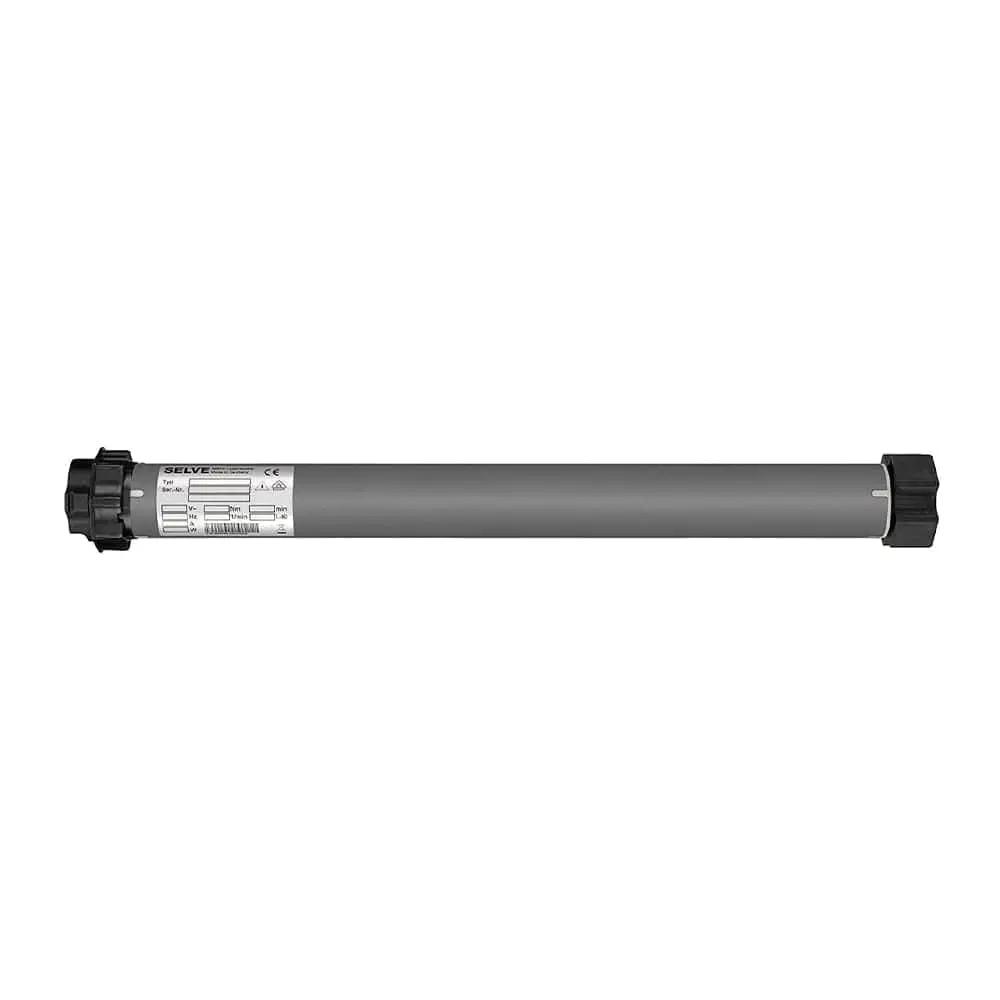

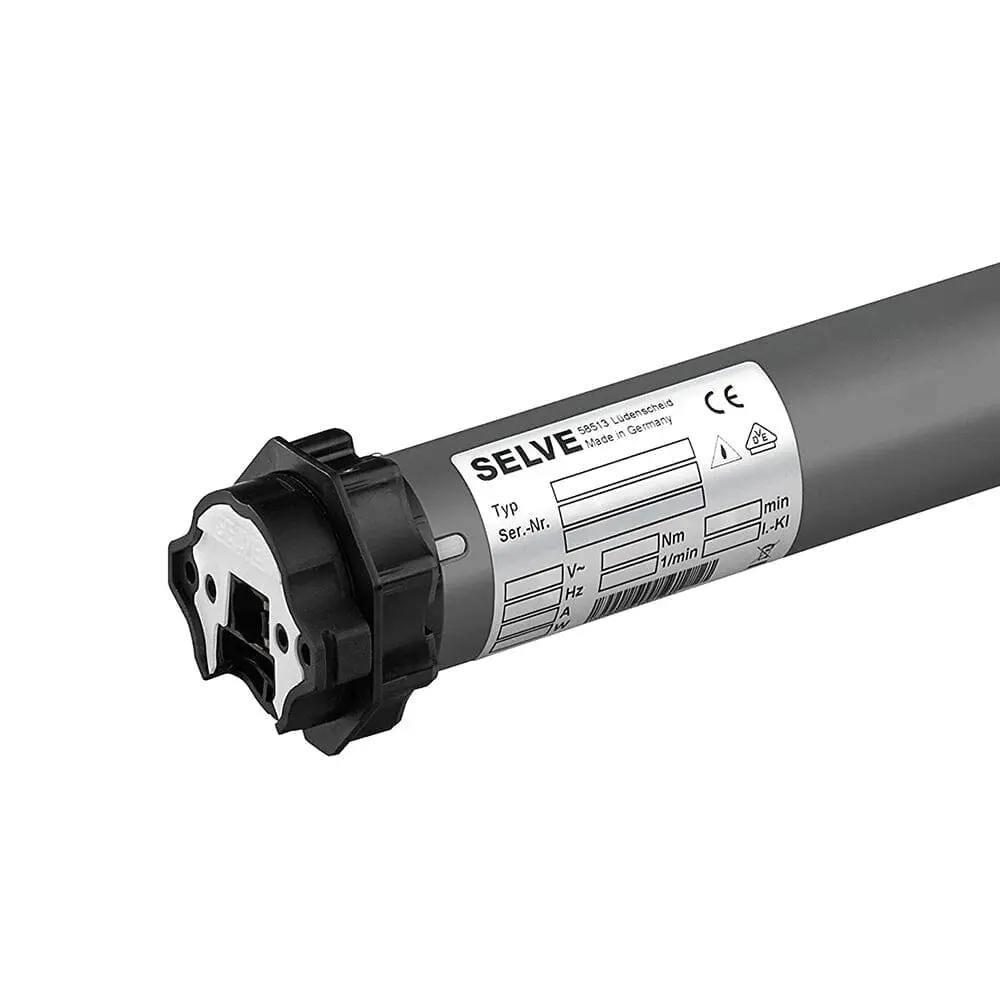

Selve Roller Shutter Motor SP 2/15 15Nm

352470

• Tubular motor with mechanical limit switch
• without radio
• Former designation in the green painted motor: SP
• Uni. motor head compatible with Somfy star bearing
• Suitable for shaft: SW50 and SW60
• No upper stop required, thanks to position-controlled shutdown
• Easy adjustability with ball head adjustment aid
• Similar illustration (delivery without adapter, driver, bearing)
• Rated torque: 15Nm

• Rated speed: 17 rpm

• Duty cycle: 4 min.
• Rated voltage: 230 V

• Power consumption: 152W

• Frequency: 50Hz

• Current consumption: 0.66 A
• Cable length: 2.5m
• Protection class: IP44
• Overall length: 523mm
• Made in Germany

Note: SP drives must not be connected in parallel! If using 2 or more drives, use a separate relay!

Scope of delivery: 1 motor with connecting cable
