Yooda Radio Roller Shutter Motor 35 R 13 Nm

1241314

• Radio roller shutter motor
• The drives have mechanical limit switches, which allow the motor to stop at a set position
• The drives have microswitches, which make programming from the transmitter easier
• Up to 20 transmitters can be programmed for each drive

• Rated torque: 13 Nm
• Supplied without adapter, drive belt, or bearing
• Rated speed: 14 rpm.
• Tube diameter: Ø 35mm
• Maximum continuous operating time: 4 min.
• Rated voltage: 230 V
• Power consumption: 121W
• Frequency: 50Hz
• Net weight: 1.76 kg
• Protection rating: IP44

• Total length: 595 mm

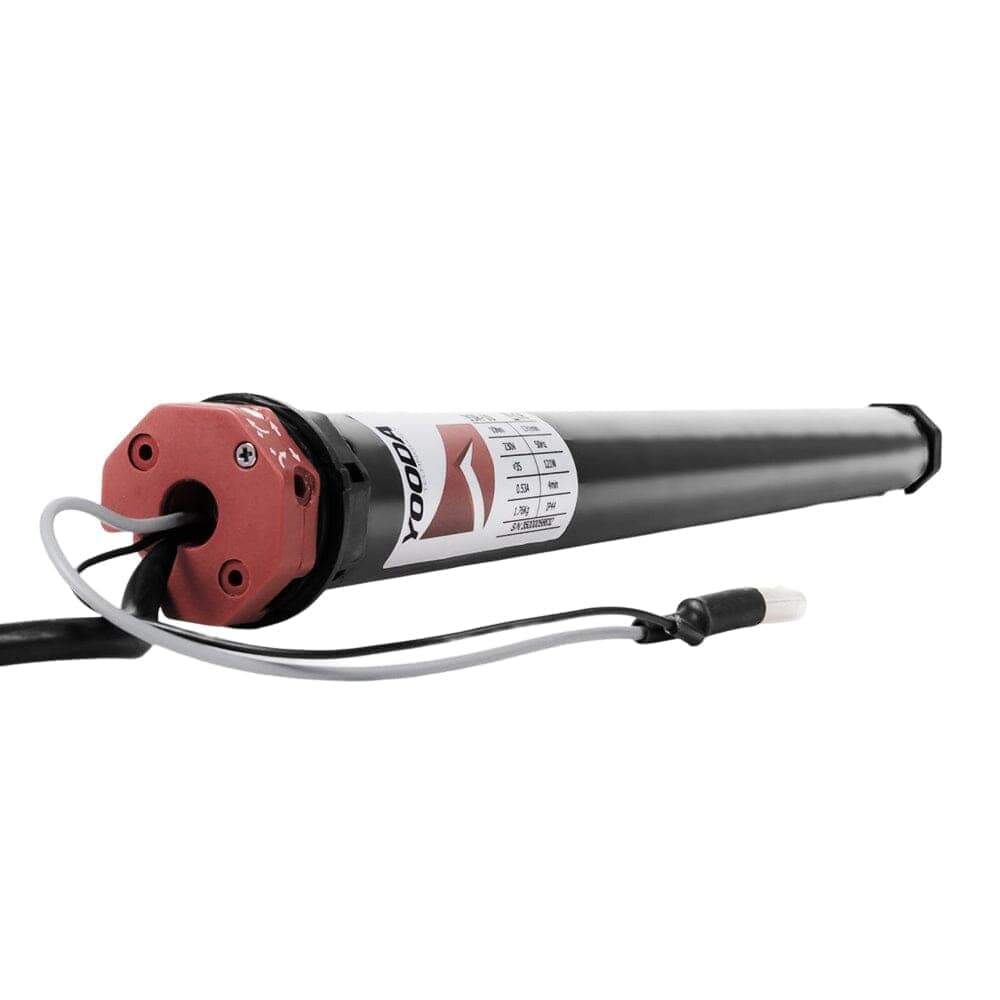

• Image for illustration purposes (supplied without adapter, drive belt, and bearing)
• Material: Steel and plastic
• Color: Gray

Scope of delivery: 1 motor with connection cable
