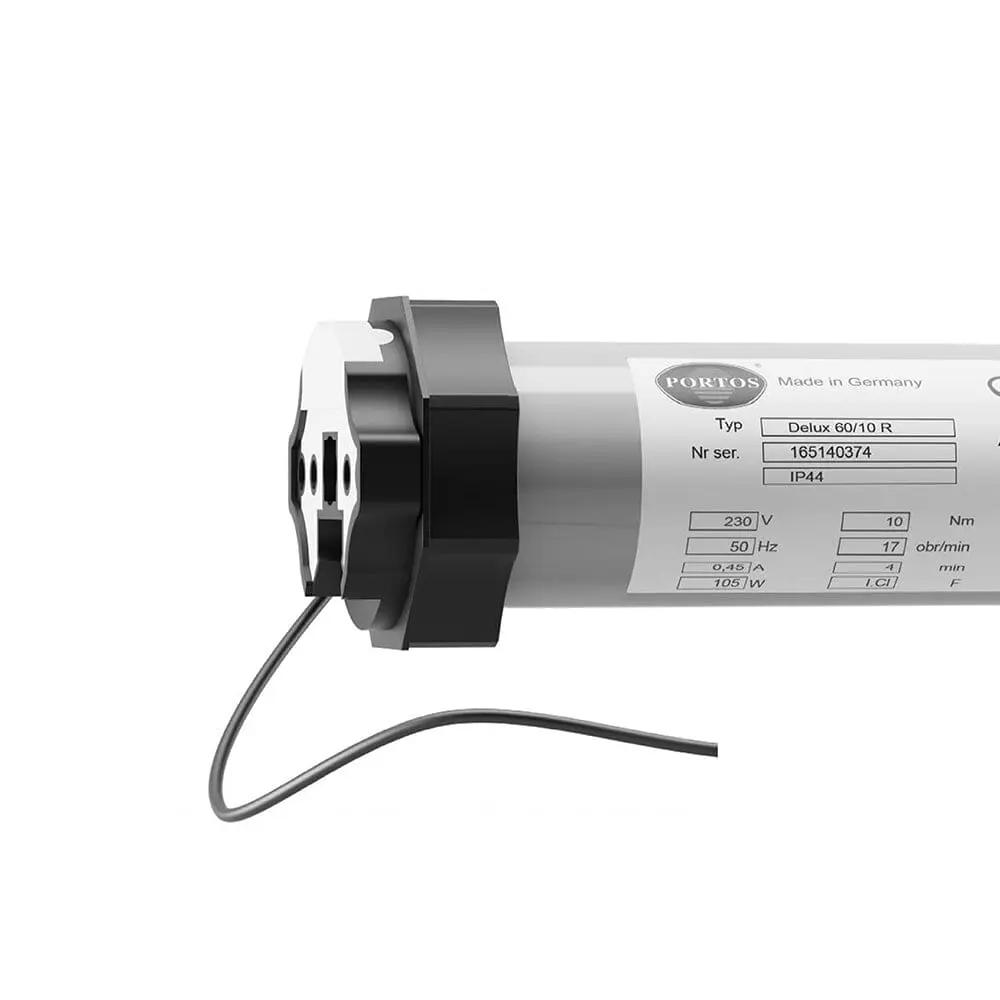

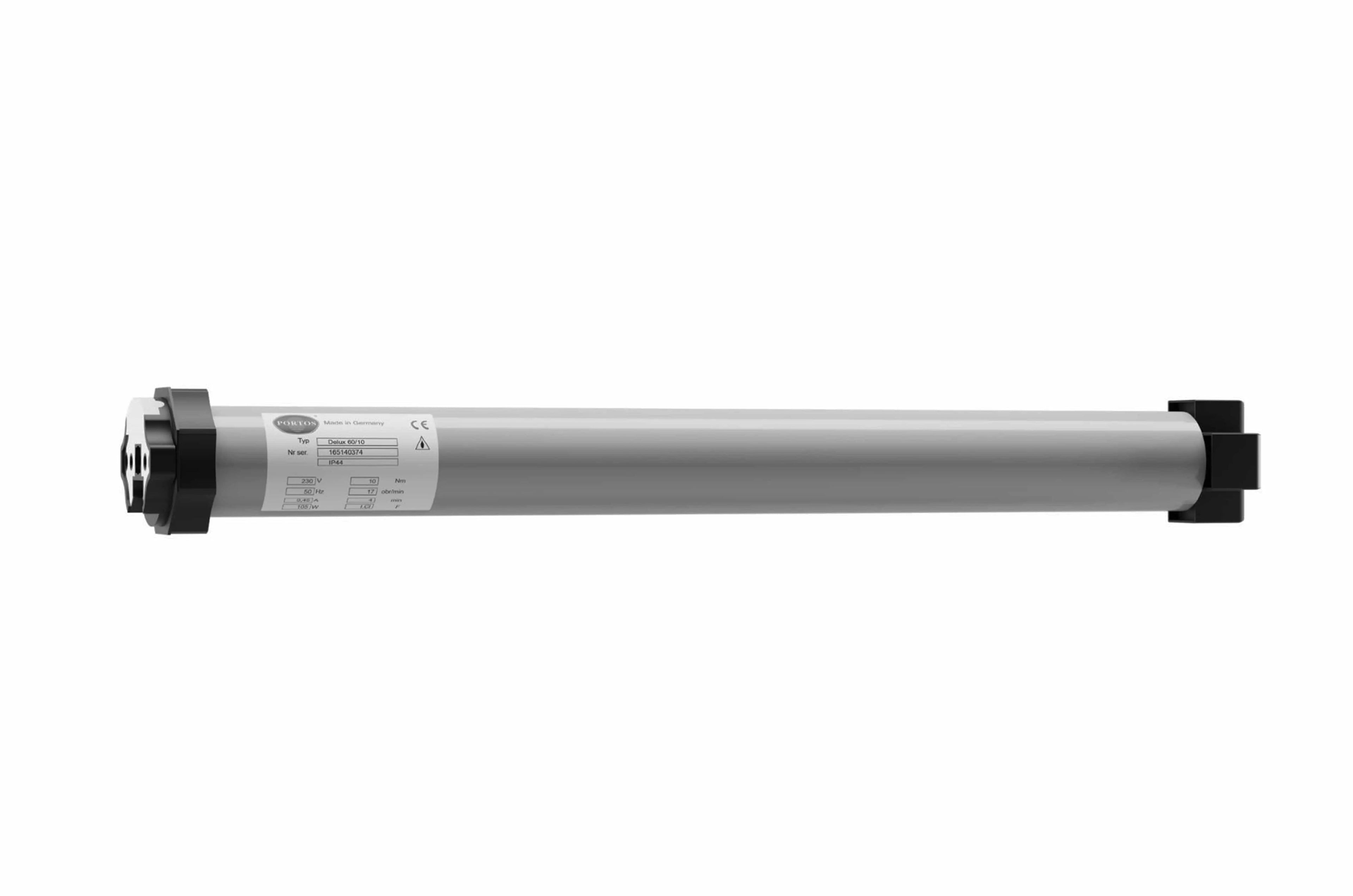

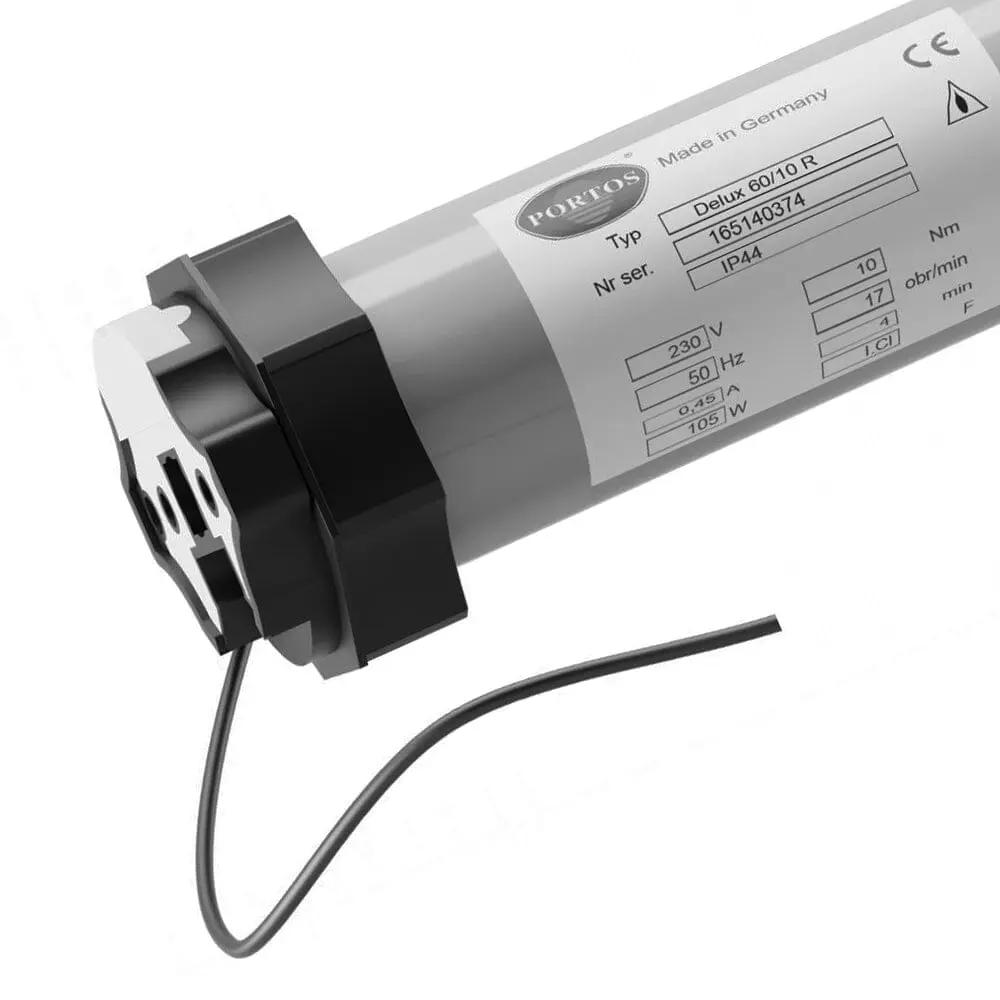

The Portos Delux series is the premium range of Portos roller shutter motors. They are operated with the Selve Iveo transmitter series and operate on a protected frequency of 868 MHz. Please note that the handheld transmitters of the Portos RR and PX series are not compatible. Thanks to its protected frequency, the Delux motor provides an additional security factor for your window.

DISCONTINUED MODEL. NO LONGER PRODUCED!

• Reliable transmission frequency of 868 MHz
• Highly sensitive obstacle detection mechanism
• Obstacle detection in AB direction with reversing (clearing the obstacle)
• Direct connection of a wall switch to the radio motor possible
• Optional setting of two comfort positions – intermediate position and ventilation/turn
• Intuitive, automatic programming of a roller shutter (after a full cycle) • Automatic direction of rotation assignment (up – down) when programming the drive
• No anti-lift devices necessary
• Intuitive programming and assignment of handheld transmitters or switches
• No shutter shutdown necessary for group assignment
• Simple group assignment and central control
• Easy assembly or disassembly of the motor using a “quick connection”
• Made in Germany

• Nominal torque 7Nm

• Rated speed 17 rpm.

• Pipe diameter 60mm
• Power consumption 95W

• Rated voltage 230V
• Frequency 50Hz
• Current 0.41 A
• Operation time 4 min.
• Cable length 2.5m
• Protection class IP44
• Total length 511mm

Scope of delivery: 1 piece with connecting cable
