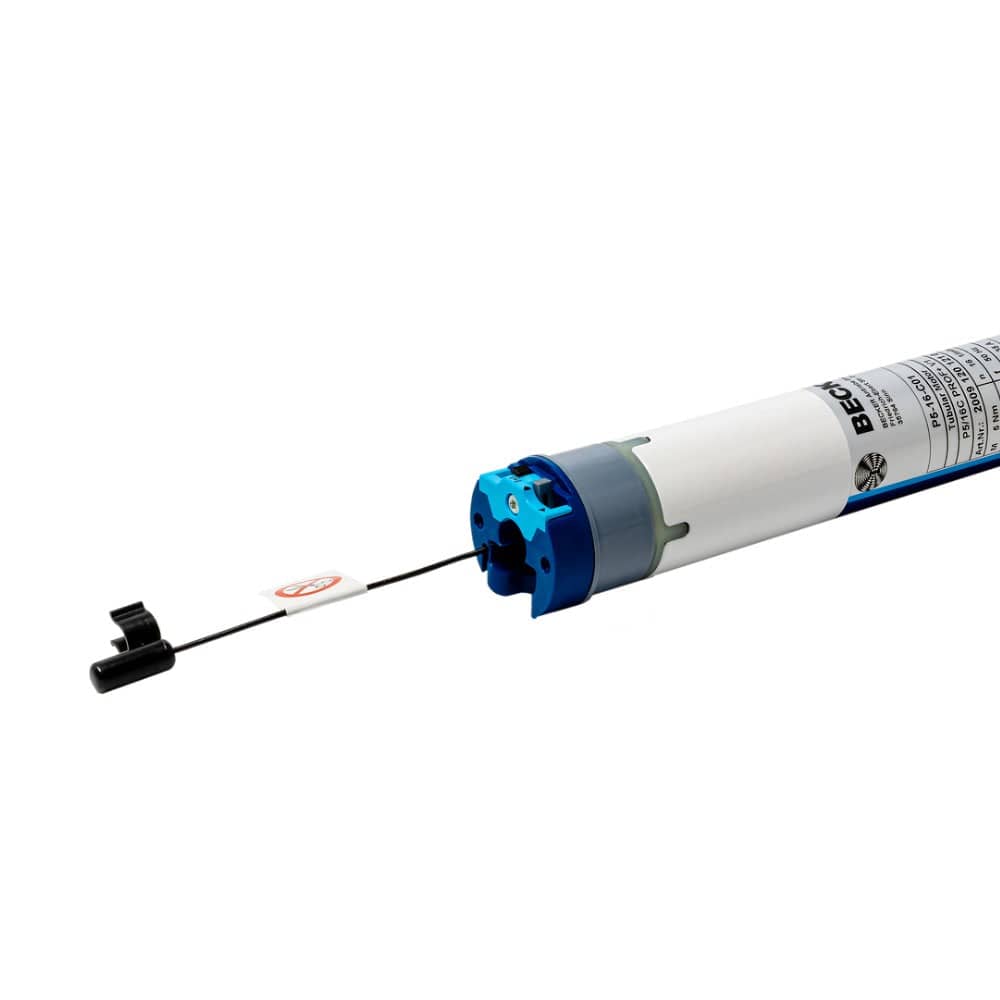

Becker radio-controlled roller shutter motor P9-16-C01 9Nm
189,95€
Skip to product information
Becker radio-controlled roller shutter motor P9-16-C01 9Nm
Hersteller: BECKER-Antriebe GmbH
FG Artikel Nummer:
300228
189,95€
Taxes included.
Shipping calculated at checkout.
Express Versand möglich
Abholung bei Fenstergigant möglich
Becker Radio Roller Shutter Motor P9-16-C01 9Nm
2009 120 122 0
- Roller shutter motor with bidirectional radio receiver
- Becker Radio System: Centronic
- Successor model to P9/16C PROF+
- Sensitive obstruction detection in the DOWN direction for optimal protection of the application and the obstruction
- CentronicPlus radio transceiver integrated: Bidirectional, 868.3 MHz, the drive reports position, blocking, and other status information
- Two intermediate positions programmable
- Blockage detection: Switches off when encountering obstructions (e.g., freezing) and increased torque
-
Automatic limit switch detection when using flexible hanging springs or rigid shaft connectorsCan be wired in parallel
- Wireless software update possible
- Switch on the motor head for changing the direction of rotation and for activating and deactivating learning mode
- On-site operation possible via a wired 1-gang push-button
-
Thresholds conveniently adjustable via handheld transmitter
- Compatible with sun, wind, and rain sensors for the highest level of comfort
- Gentle stop at the top: The application is optimally protected by a gentle stop
- Anti-freeze protection at the top: The drive stops shortly before reaching the upper limit stop position, this position is cyclically monitored and corrected
- Insect screen protection function: Detects open insect screen doors and prevents damage to the system
- Mesh technology ensures automatic networking of all devices into a powerful network
- Design: Mini (from SW 40)
- Radio system: Becker Centronic
- Rated torque: 9Nm
- Rated speed: 16 rpm
- Rated voltage: 230 V
- Power consumption: 110W
- Current consumption: 0.47A
- Outer diameter: 35mm
- Protection class IP44
- Frequency 50Hz
- Insertion length: 491mm
Scope of delivery: 1 motor with connection cable
