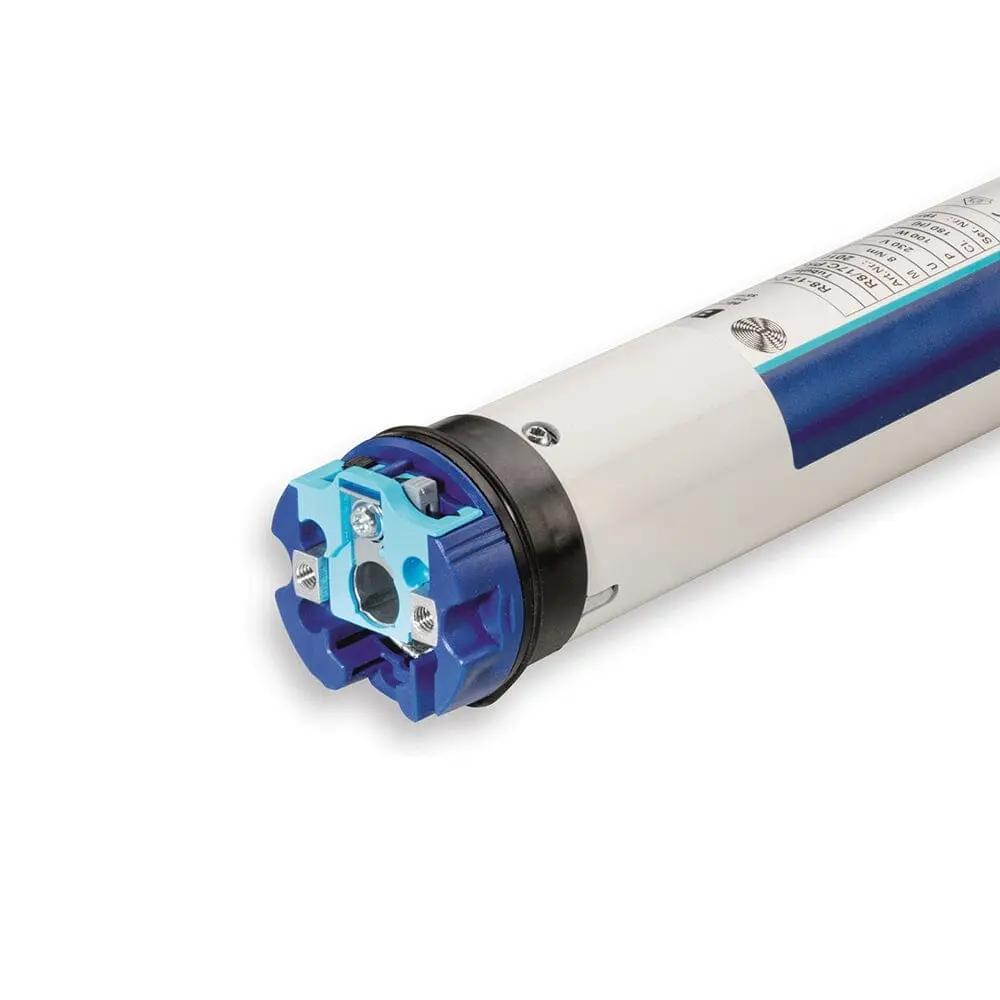

Becker radio roller shutter motor R12-17-C01 PLUS 12Nm
184,95€
Skip to product information
Becker radio roller shutter motor R12-17-C01 PLUS 12Nm
Hersteller: BECKER-Antriebe GmbH
FG Artikel Nummer:
300205
184,95€
Taxes included.
Shipping calculated at checkout.
Express Versand möglich
Abholung bei Fenstergigant möglich
Becker Radio Shutter Motor R12-17-C01 PLUS
2010 120 159 0
- Roller shutter motor with bidirectional radio receiver
- Becker radio system: Centronic PLUS
- Sensitive obstacle detection in the down direction for optimal protection of the application and the obstacle
- CentronicPlus radio transceiver integrated: Bidirectional, 868.3 MHz, the drive reports position, blocking and other status information
- Two intermediate positions programmable
- Blocking detection: Switches off in case of obstacles (e.g. freezing) and torque increase
-
Automatic end position detection when using flexible suspension springs or rigid shaft connectorsParallel connection possible
- Wireless software update possible
- Switch on the motor head to change the direction of rotation and to activate and deactivate the learn mode
- On-site operation possible via a wired 1-gang push-button
-
Thresholds easily adjustable via hand transmitter
- Compatible with sun-wind-rain sensors for the highest level of comfort
- Soft stop at the top: The application is optimally protected by a gentle stop
- Anti-freeze protection at the top: The drive stops shortly before reaching the upper limit stop, this position is cyclically monitored and corrected
- Insect screen protection function: Detects open insect screen door and prevents damage to the system
- Mesh technology ensures automatic networking of all devices into a powerful network
- Rated torque: 12Nm
- Rated speed: 17 rpm
- Rated voltage: 230 V
- Power consumption: 110W
- Current consumption: 0.5A
- Outside diameter: 45mm
- Protection class IP44
- Frequency 50Hz
- Total length: 528mm
Scope of delivery: 1 motor with connection cable
