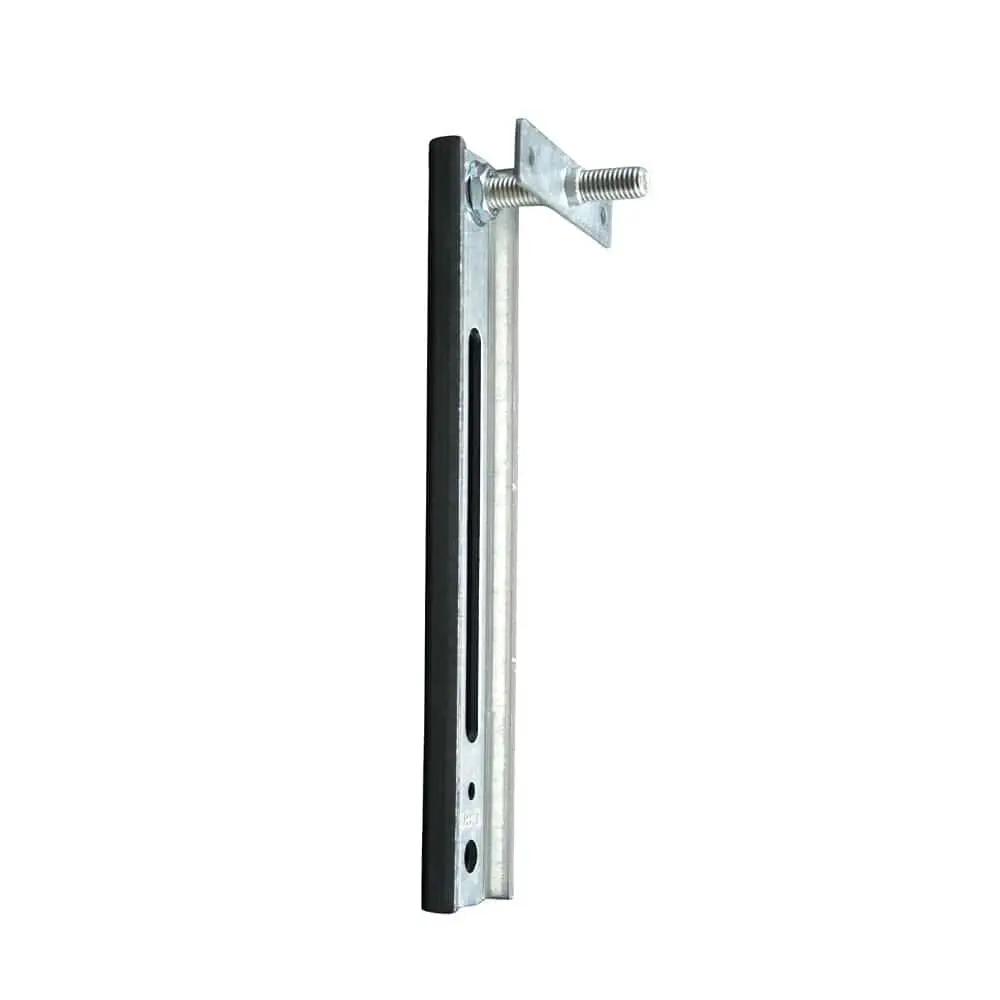

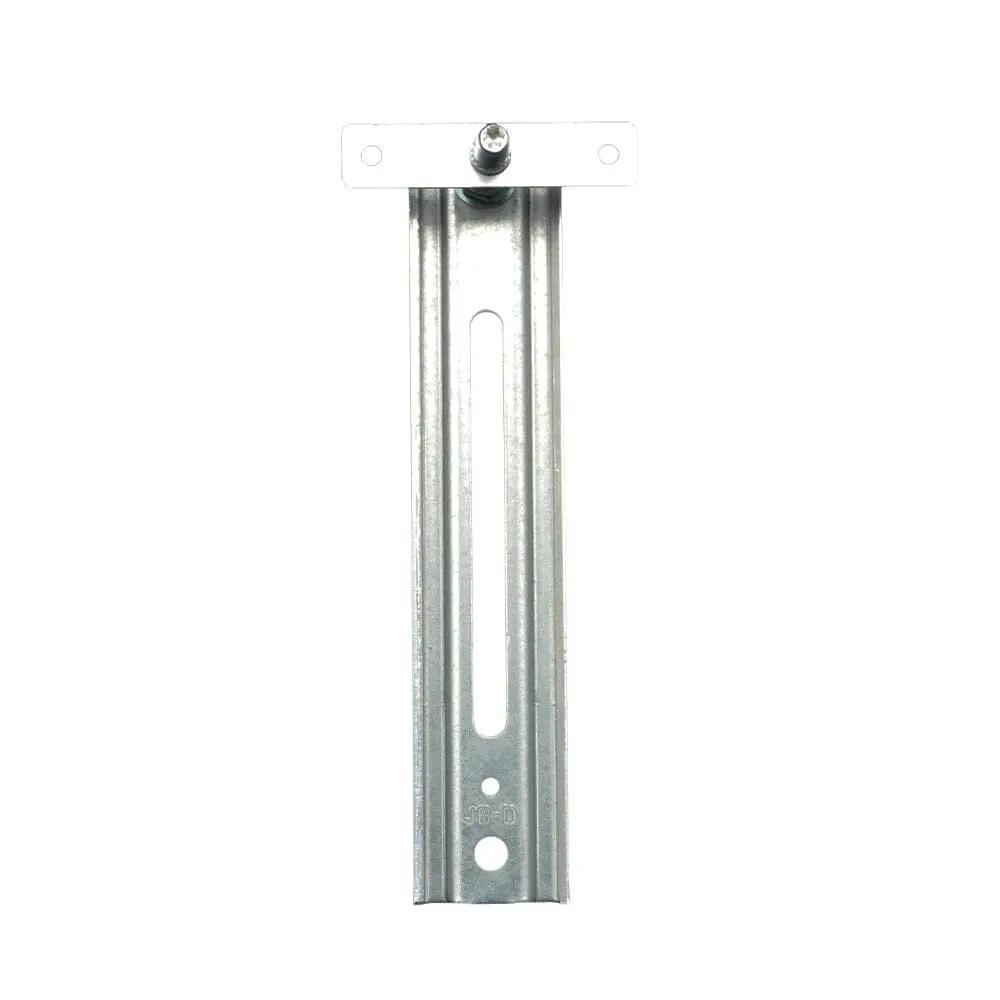

Würth Window Mounting Rail with Screw Plate JB-D

• For adjustable window installation in thermally insulated wall constructions
• The adjustable window mounting system JB-D enables planned window installation according to RAL guidelines and the safe dissipation of all occurring live loads
• The system is three-dimensionally adjustable to easily compensate for construction tolerances
• The installation level is freely selectable and can be adapted according to the isotherm curve
• For side mounting of windows to the building structure
• Suitable for: Solid sand-lime brick, aerated concrete, concrete, and perforated brickwork
• Max projection: 100 mm

• Max load force: 750 N

• Length: 188 mm
• Width: 10 mm
• Max distance adjustment: 40 mm

• Material: Galvanized steel
• Color: Silver

Scope of delivery: 1 piece
