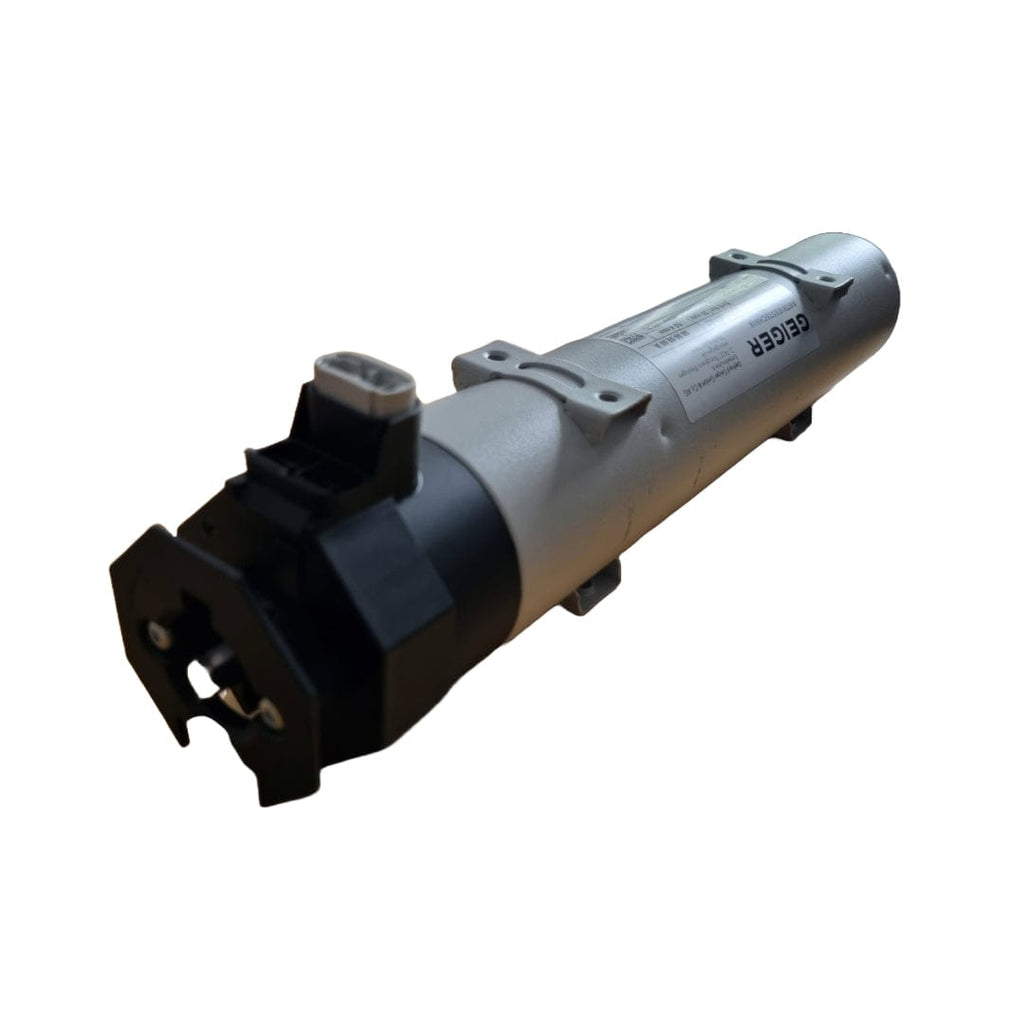

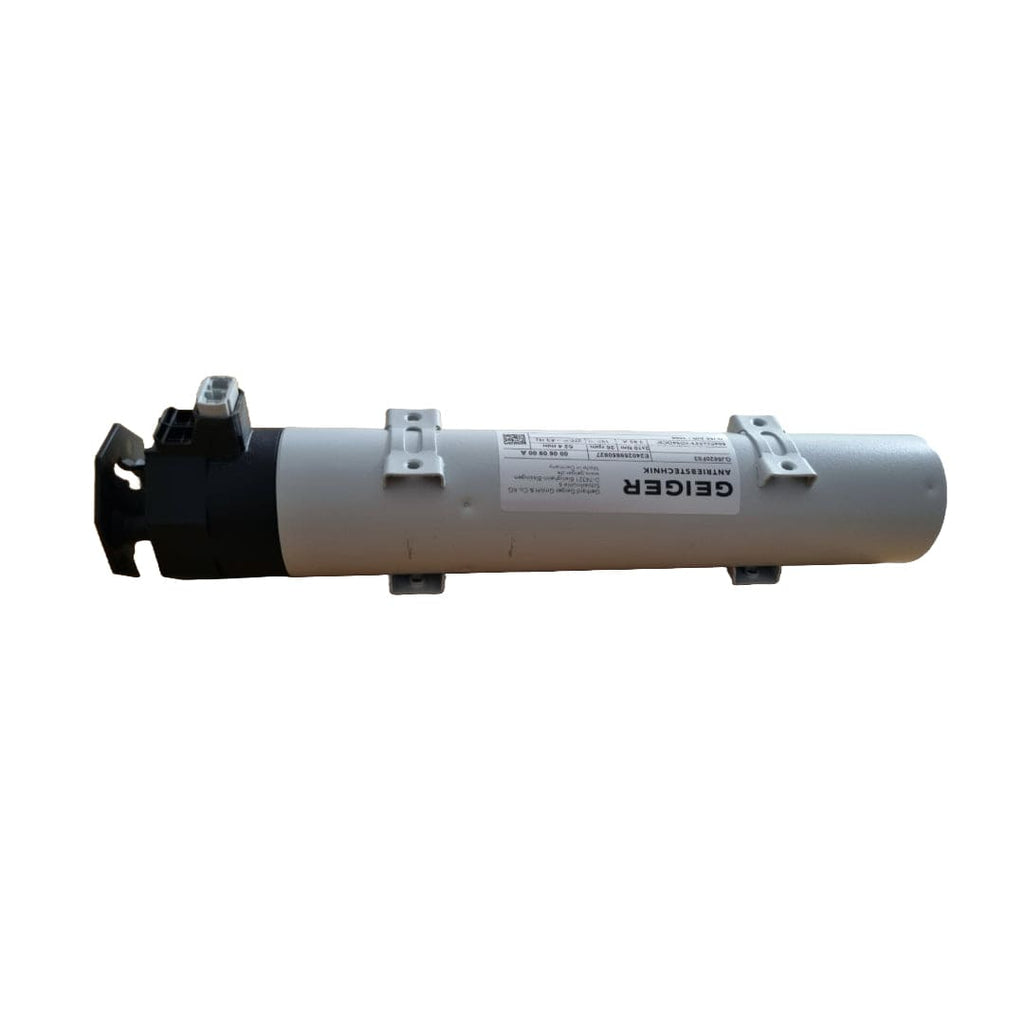

Geiger GJ5620 F03 Radio Venetian Blind Drive 20Nm

• End positions adjustable with any AIR transmitter
• Application: external venetian blinds / venetian blinds
• With run-on limit switch for safety shutdown
• Optional referencing to the run-on switch to compensate for altered winding behavior
• Intermediate position with adjustable slat angle
• Dynamic torque shutdown
• Parallel connectable
• Bidirectional radio
• Proven motor and brake concept
• Motor intelligence: torque shutdown in case of overload
• Shutdown by run-on limit switch: operating errors excluded
• Frost protection
• Total length: 336 mm
• Weight approx. 2.2 kg
• Wired motor
• Top cut-off function: switching sensor
• Bottom cut-off function: position
• Voltage: 230V~/50Hz
• Rated current: 0.85 A
• Rated power consumption: 190W
• Torque: 2 x 10 (20Nm)
• Speed: 26 rpm
• Protection class IP 54
• Diameter: 55mm

Scope of delivery: 1 piece (without connection cable, shaft couplings, mounting kit)
