Elero blind drive JA NHK from the light for 12mm square 9Nm
Hersteller: Elero
FG Artikel Nummer:
396094
798,95€
Taxes included.
Shipping calculated at checkout.
Elero blind drive JA NHK from light for 12mm square 9Nm
35.4182.413
-
Wired blind drive
- JA NHK blind drive with emergency override for opening the blind even in case of power failure
- Blind drive with connection for additional crank operation
- with mechanical limit switch
- System can be manually operated via standard blind gear
- Suitable for a headrail of 55 x 55 mm
- Suitable for: 12mm square
- Rated torque: 9Nm
- Rated speed: 26 U/Min.
-
Rated voltage: 230 V
- Frequency: 50Hz
- Power consumption: 195W
-
Current consumption: 0.55A
- Protection class: IP44

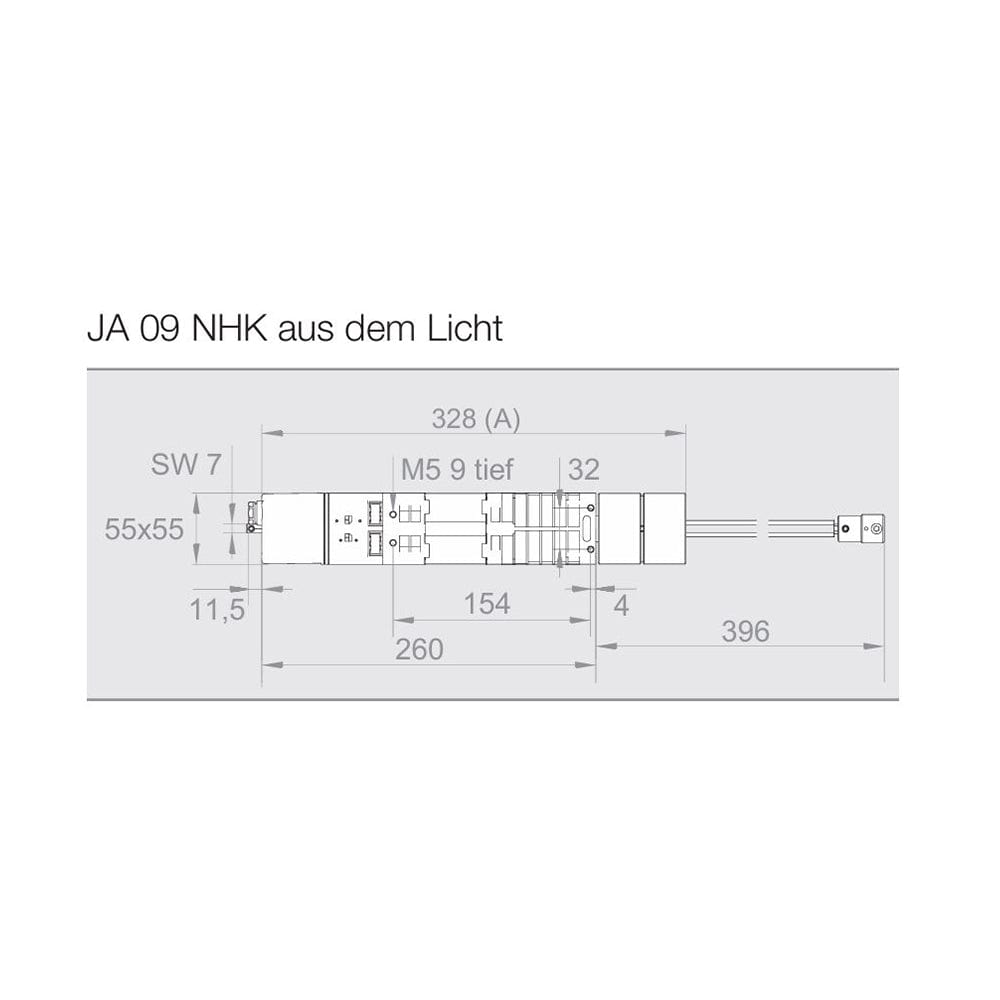

- Length: 328 mm
- Color: Grey
-
Material: Steel and plastic
Scope of delivery: 1 motor with connection cable
