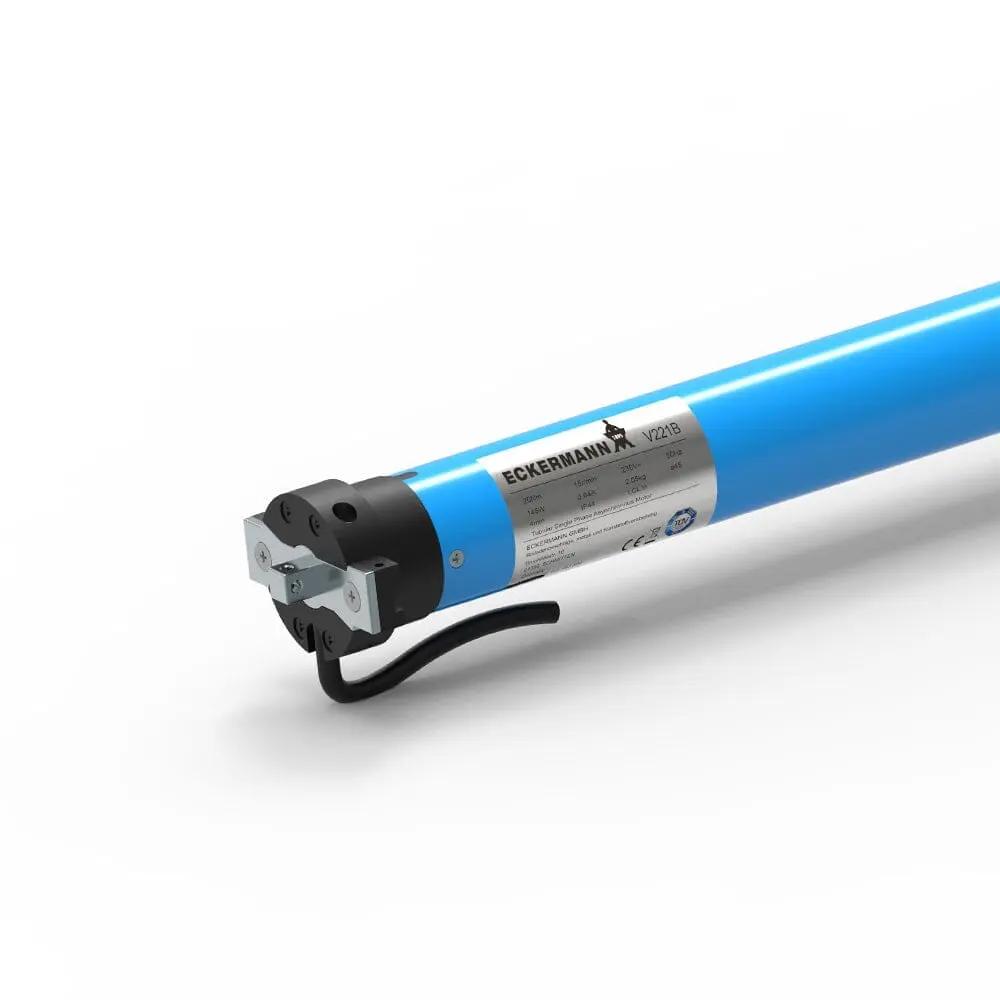

Portos roller shutter motor S-40/10

EckermannSKU: 395005

Price:
Sale price112,95€

Tax included Shipping calculated at checkout

Stock:
In stock

Description

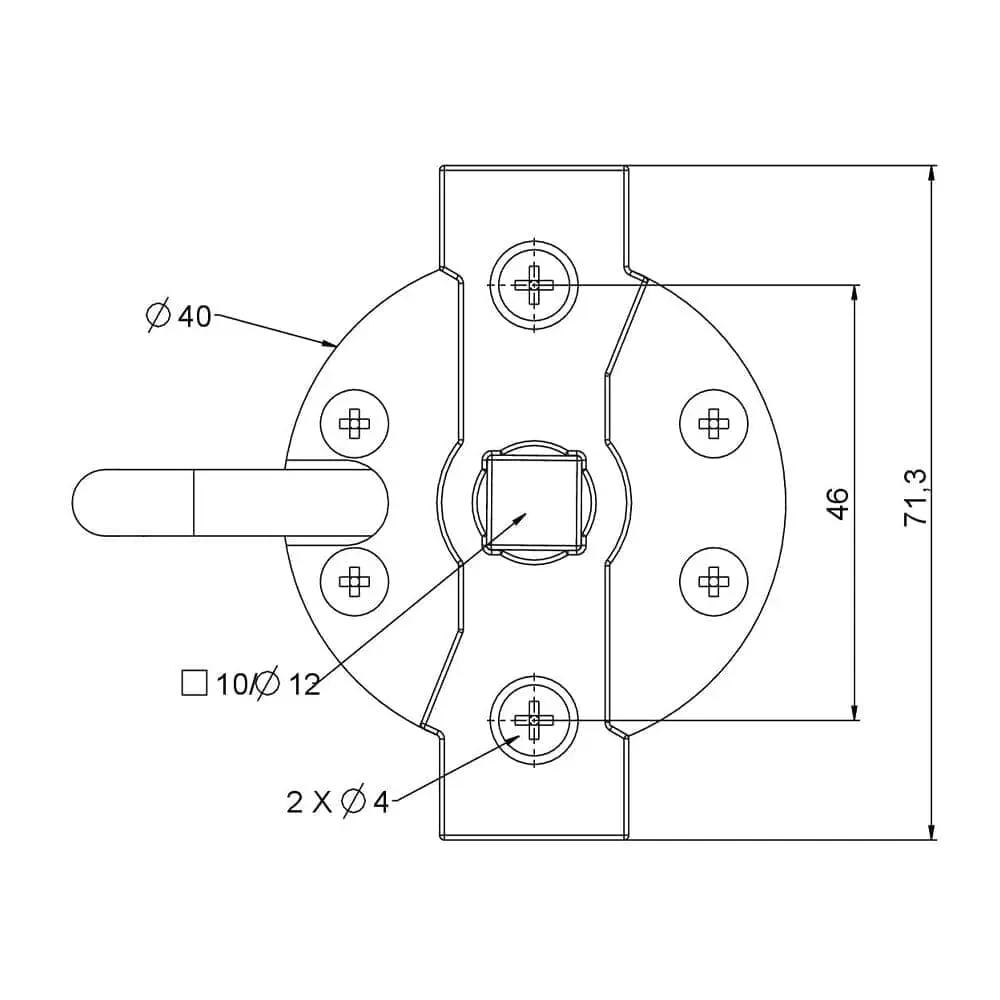

PORTOS and PORTOS-R series drives are single-phase, asynchronous electric motors controlled by 230V 50 Hz voltage. They are equipped with the so-called mechanical limit switching, which means that the positions in which the motor installed in the roller shutter stops are determined manually (with an adjustment key) at the drive head. The motors are suitable for an octagonal tube with the diameter of 40, 60 and 70 mm.

  • Nominal torque 10Nm
  • Nominal speed 17 rpm.
  • Tube diameter 35mm
  • Rated voltage 230V
  • Power consumption 121W
  • Frequency 50Hz
  • Current 0,53 A
  • Operating time 4 min.
  • Net weight 1,58kg
  • Cable length 2m
  • Protection class IP44
  • Maximum speed 39U
  • Total length 520mm

Scope of delivery: 1 motor with mounting material and adjustment pin
