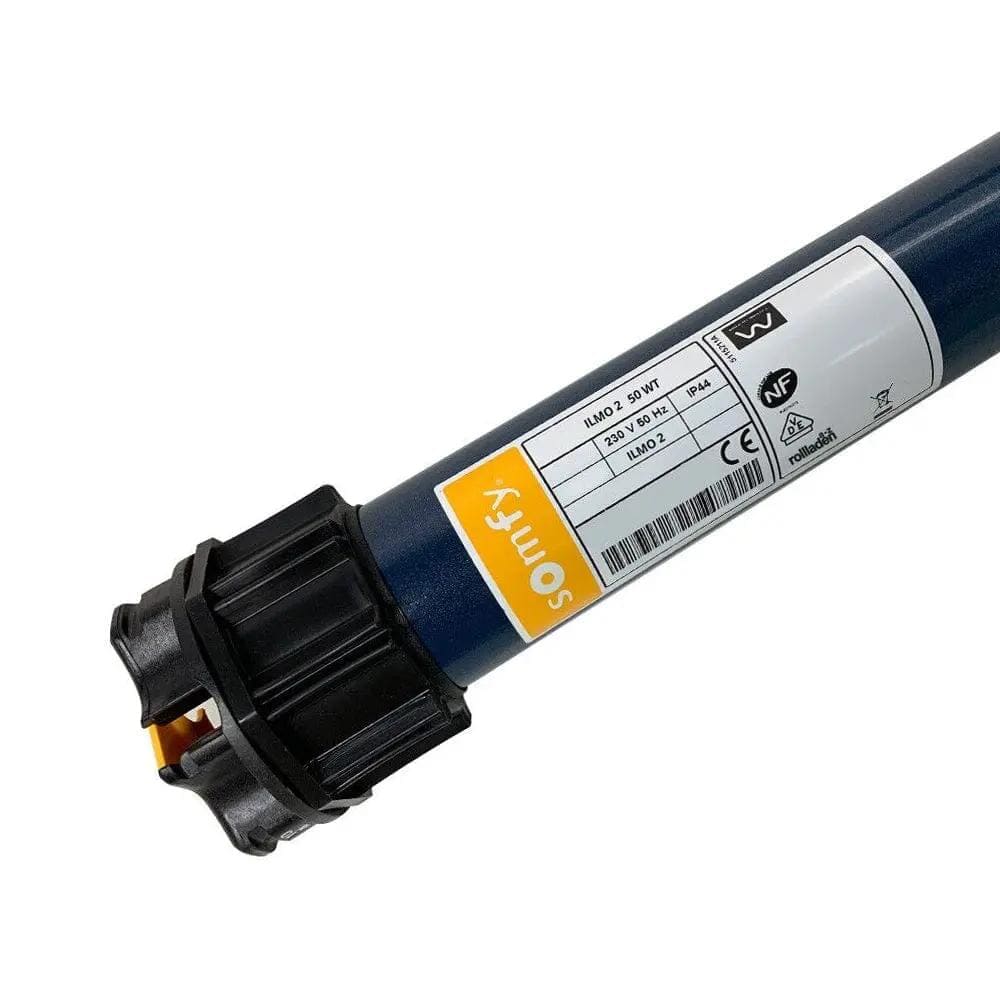

Somfy ILMO 50 WT 30/17 Roller Shutter Motor

• Roller shutter motor without radio
• The new generation of electronic plug-in drives for roller shutters combines maximum functionality with simple "Plug & Play" installation
• Automatic detection of rotation direction and end limits
• Continuous electronic torque monitoring
• Obstacle detection when closing and freeze protection when opening
• Automatic end limit correction
• Control via wired switch (UP-DOWN-STOP)
• Somfy Drive Control for a reduction of applied forces
• with permanently attached cable
• Rigid shaft connectors and stoppers required
• Image similar (delivery excludes adapter, drive wheel and bracket)
• Design: from SW50
• Drive diameter: 47 mm
• Torque (Nm): 30
• Protection rating IP: 44
• Speed (revolutions per minute): 17
• Power consumption (W): 240
• Nominal voltage: 230 V
• Mains frequency: 50 Hz
• Material: Steel and plastic
• Color: Blue

Scope of delivery: 1 motor with connection cable
