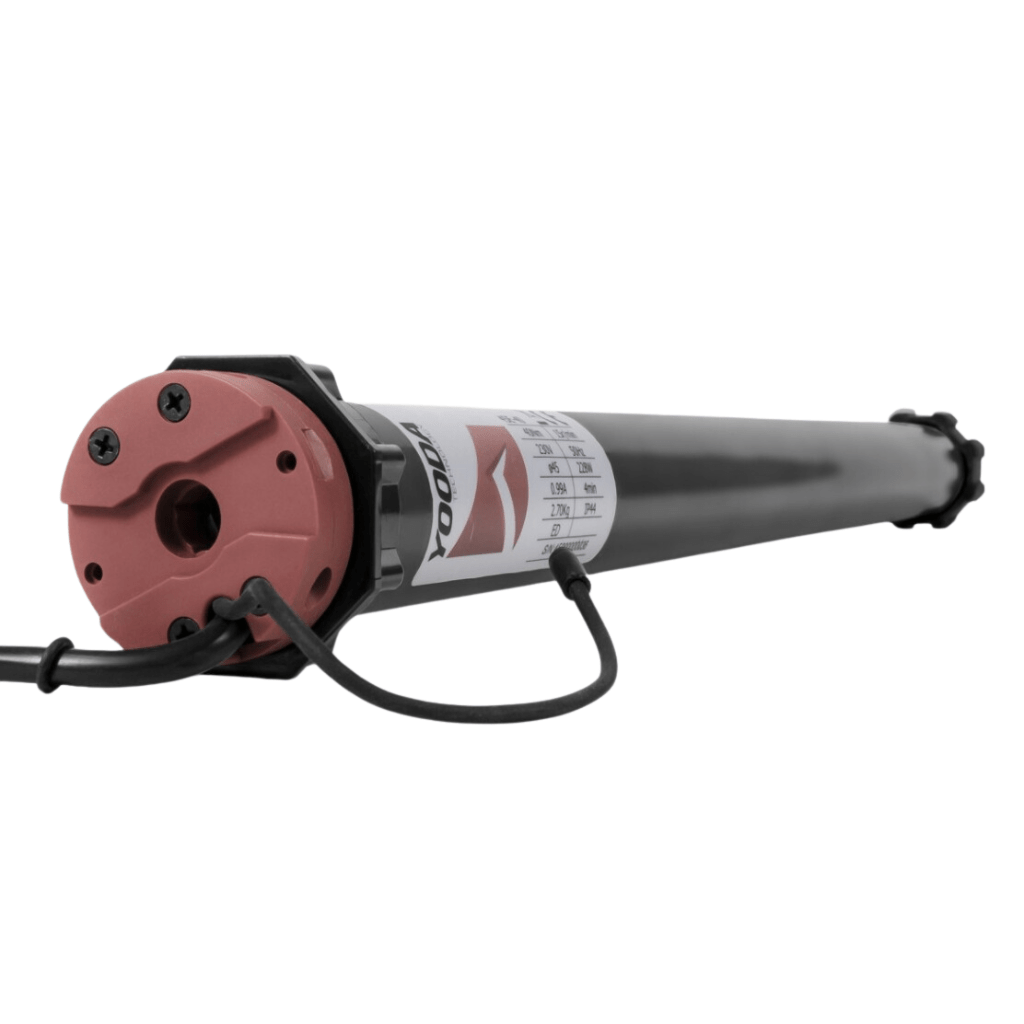

Yooda Awning Radio Motor 45ED 30 Nm

120302ED

• Awning radio motor
• with built-in radio receiver
• with obstacle detection
• Application area: Awnings
• The self-tensioning when the awning is open ideally tightens the material and at the same time ensures that no folds are formed. When the awning is closed, it loosens the material
• The obstacle detection stops the drive if an obstacle appears in the awning's path
• The electronic limit switches, which can be set using the hand transmitter or automatically, ensure easy programming
• The 45ED drives are designed for automating the operation of cassette awnings

• Torque: 30 Nm
• Speed: 15 RPM
• Operating current: 0.87 A
• Weight: 2.6 kg
• Power consumption: 200 W
• Power supply: 230 V / 50 Hz
• Length: 660 mm
• Drive diameter: Ø45 mm
• Suitable for shafts: Ø50, Ø60, Ø63, Ø68, Ø70, Ø78
• Image for illustration purposes (supplied without adapter, drive coupling, or bearing)

• Material: Aluminum and plastic
• Color: Gray

Scope of delivery: 1 motor with connection cable
