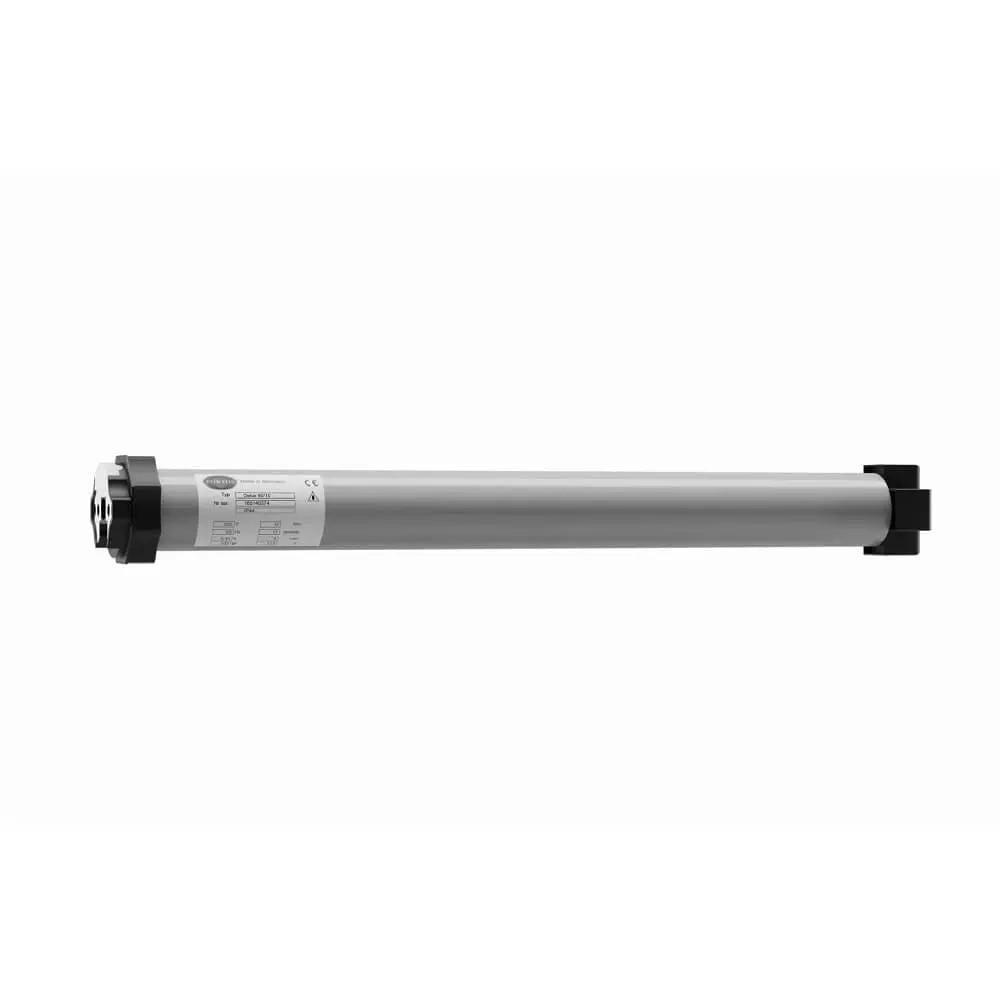

Portos roller shutter motor Delux 60/30

PortosSKU: 331020

Sale price249,95€

Tax included Shipping calculated at checkout

Sold out


The drives of the Portos Delux series, is the premium series of Portos roller shutter motors.

  • Highly sensitive obstacle detection mechanism
  • Obstacle detection in DOWN direction with reversal (clearing the obstacle)
  • Parallel connection and control of several drives (max. 16) by means of one switch
  • Intuitive, automatic programming of a roller shutter (after a full cycle)
  • Automatic direction of rotation assignment (up - down) during drive programming - No need for anti-lift devices
  • Simple group assignment and central control - Simple assembly or disassembly of the motor by means of a "quick connector
  • Parallel connection with other DELUX motors possible
  • Made in Germany
    • Rated torque 30Nm
    • Rated speed 17 rpm
    • Tube diameter 60mm
    • Power consumption 220W
    • Rated voltage 230V
    • Frequency 50Hz
    • Current 0,95 A
    • Operation time 4 min.
    • Cable length 2,5m
    • Protection class IP44
    • Total length 570mm

    Scope of delivery: 1 motor with mounting material
