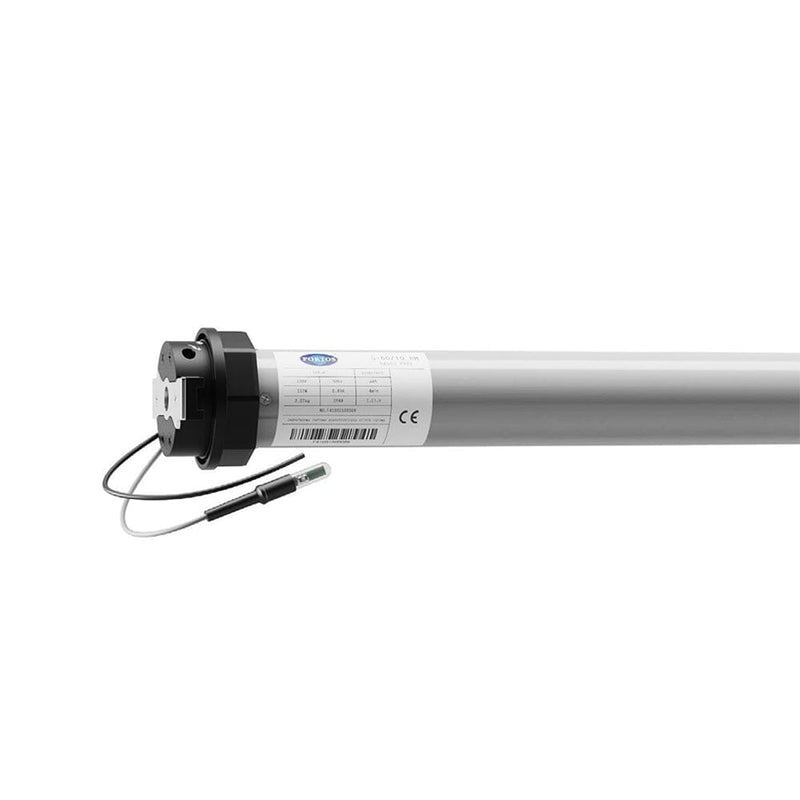

Portos shutter radio motor S-40/10 RM

PortosSKU: 331011

Price:
Sale price119,95€

Tax included Shipping calculated at checkout

Stock:
In stock

Description

PORTOS and PORTOS-R series drives are single-phase, asynchronous electric motors controlled by 230V 50 Hz voltage. They are equipped with the so-called mechanical limit switching, which means that the positions in which the motor installed in the roller shutter stops are determined manually (with an adjustment key) at the drive head. The motors are suitable for an octagonal tube with the diameter of 40, 60 and 70 mm.

The PORTOS-R radio control system is based on wall-mounted devices and hand-held transmitters operating on the 433 MHz frequency (fixed code). This allows to control the roller shutters from any place in the building, using any transmitter from the PORTOS-R control system. The system includes devices for time control, with which the lowering of the roller shutters can be pre-programmed at certain times.

  • Nominal torque 10Nm
  • Rated speed 17 rpm
  • Tube diameter 35mm
  • Rated voltage 230V
  • Power consumption 121W
  • Frequency 50Hz
  • Current 0,53 A
  • Operating time 4 min.
  • Net weight 1,58kg
  • Cable length 2m
  • Protection class IP44
  • Maximum speed 39U
  • Total length 642mm

Scope of delivery: 1 motor with mounting material and adjustment pin
