FG Artikel Nummer: 300251

689,95€

Taxes included. Shipping calculated at checkout.

Express Versand möglich

Abholung bei Fenstergigant möglich

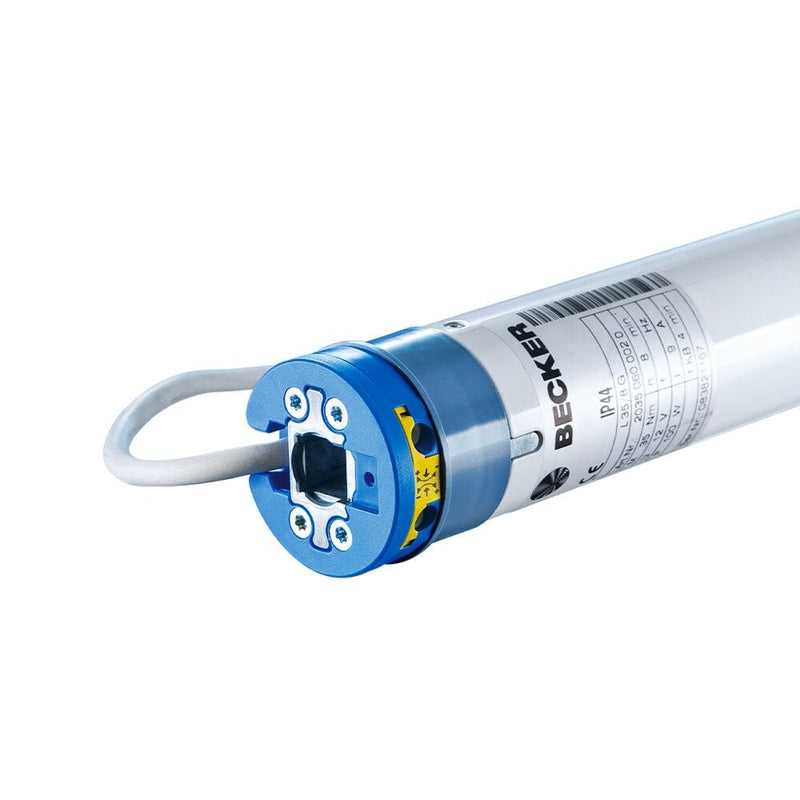

Becker DC tubular motor L60-8-M06 60Nm

2060 060 002 0

DC tubular motor
without radio
Universally applicable DC tubular drive for applications requiring safety extra-low voltage, with precise mechanical limit switching
Mechanical limit switching
without radio
Integrated relay control for UP and DOWN allows operation with standard switches/push-buttons or controllers with potential-free output
Allows combination with 12V or 24V batteries for emergency operation during power failure (GS2 DC control unit required)
Finely graduated and reliable limit position adjustment. The limit switches are adjusted by turning the adjusting screws on the motor head, allowing for simple and precise setting of the end positions
The curtain can wrap over the motor head. Use is also possible in the tightest of spaces
VDE certified
Suitable for right-hand and left-hand installation
Can be combined with all Becker wall bearings
Can be used for roller shutter and sun protection applications, swimming pool covers, and vehicle bodywork
Overheating protection
Cable type: Rubber - S05RN-F 4x1 white
Design: L (from Ø 63 mm)
Nominal torque: 60Nm
Nominal speed: 8 rpm
Power supply (AC/DC): DC
Power consumption: 150W
Current consumption: 6.3A
Outer diameter: 58mm
