FG Artikel Nummer: 300244

228,95€

Taxes included. Shipping calculated at checkout.

Express Versand möglich

Abholung bei Fenstergigant möglich

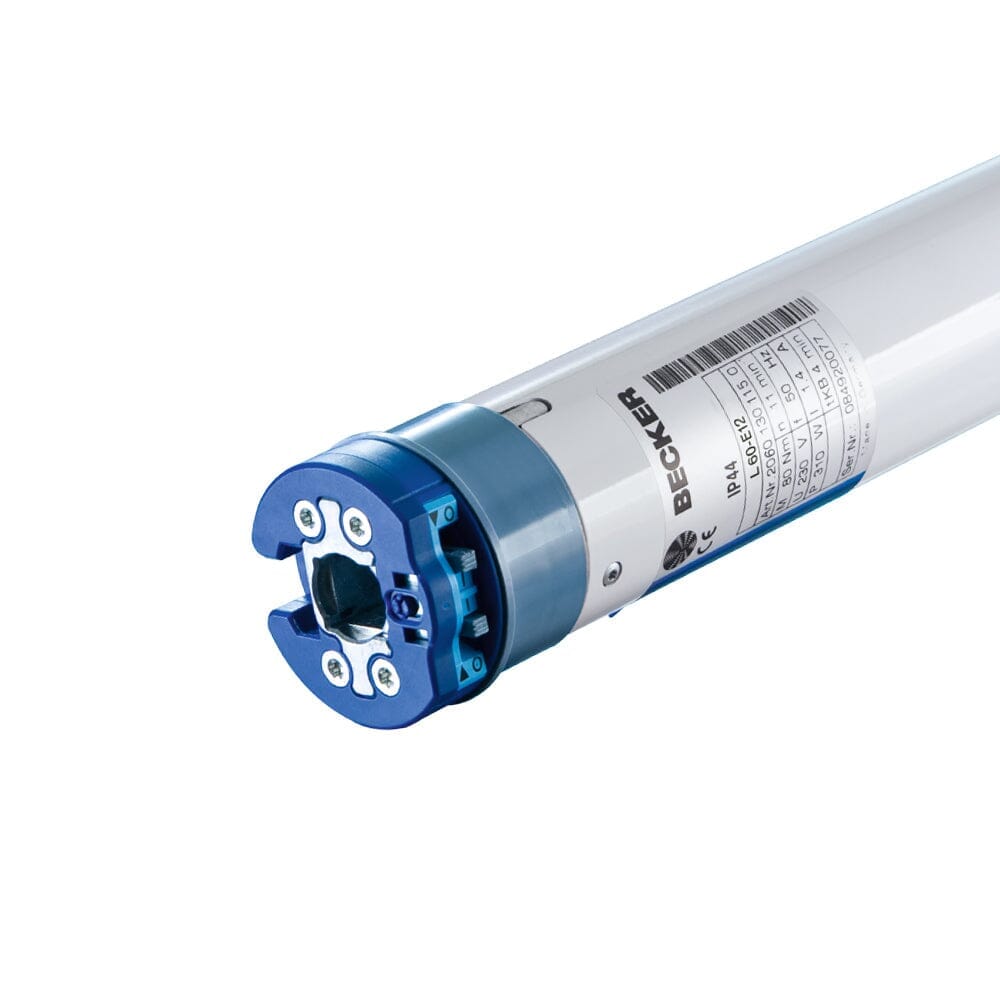

Becker Tubular Motor L50-17-E12 5 0Nm

2050 130 211 0

Universal sun protection drives
with electronic limit switch
without radio
Application recommendation: Pergola, conservatory awning, drop-arm awning, insect screen, valances, markisolette, window awning, screen, roller blind, horizontal screen, cassette articulated-arm awning and open / semi-open articulated-arm awning
Blockage detection with multiple testing
Increased closing force for e.g. cassette awnings
Fabric tensioning function: The drive tightens the fabric by moving to a freely adjustable reversing position - can be optionally deactivated/activated
Fabric relief: The drive protects the fabric by relieving tension in the upper stop limit position - can be optionally deactivated/activated
Limit position setting: Automatic detection with existing upper stop and fixed point limit position programming top/bottom
Stop behavior switchable
Auto-install function: The drive programs the limit positions independently
Electronic limit switch
Plug-in connection cable
Automatic curtain length compensation
Can be connected in parallel without isolation relay
Soft stop at the top - optimal adjustment of closing forces to protect the fabric
Suitable for right and left-hand installation
Motor protected against overheating
Design: Large (from SW 70)
Rated torque: 50Nm
Rated speed: 17 rpm
Rated voltage: 230 V
Frequency: 50Hz
Power consumption: 315W
Current consumption: 1.4A
Outer diameter: 58mm
Protection class IP44
Weight: 3.20kg
Total length: 608.3mm
Made in Germany
