Becker roller shutter motor P5-16-E01 5Nm


Price:
Sale price138,95€

Tax included plus Shipping Costs
Delivery time 1-3 Working Days DEUTSCHLAND AUSTRIA BENELUX

Stock:
In Stock - available immediately

Description

Becker Drives Logo

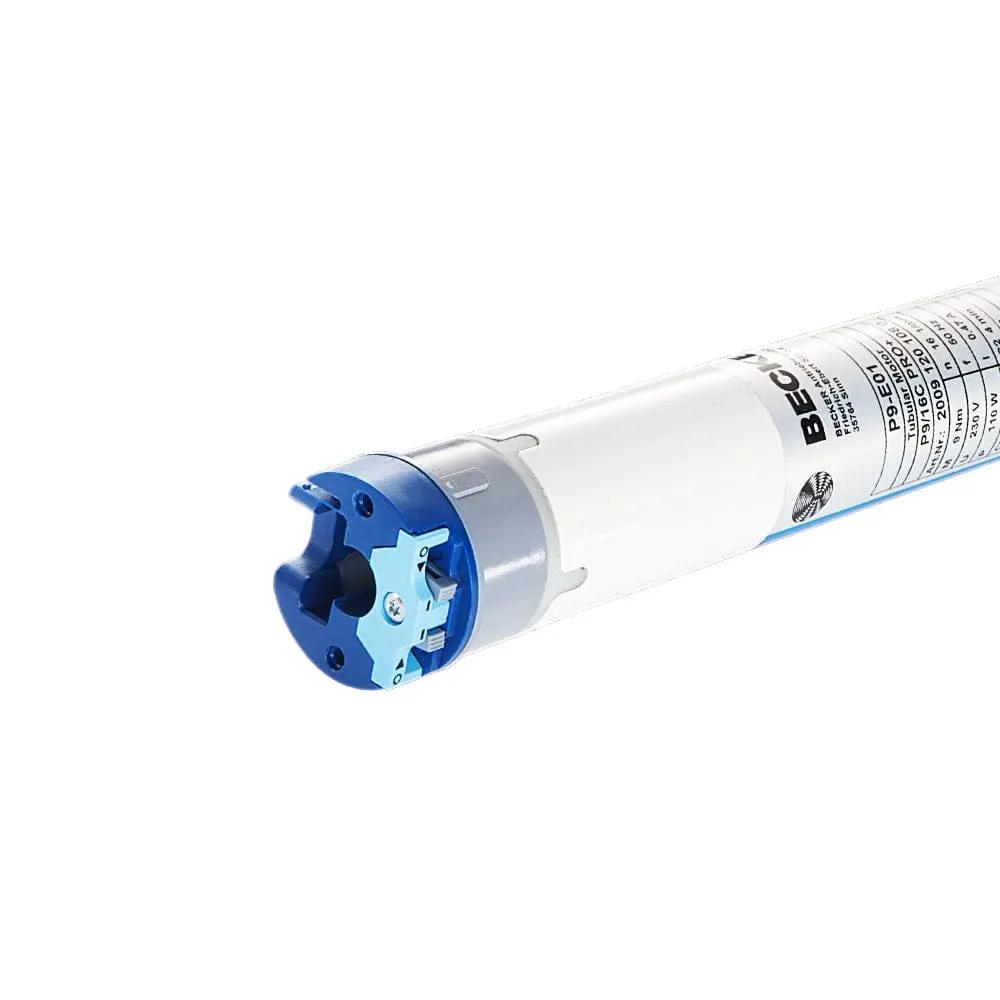

Becker roller shutter motor P5-16-E01

2009 120 110 0

High-quality electronic tubular motors for roller shutters and awnings from the German brand manufacturer Becker. For over 100 years, they have been producing high-quality products "Made in Germany." Every drive unit is tested on a standardized test bench for performance, insulation resistance, braking force, and limit switch accuracy. Combined with modern manufacturing in Germany, this ensures the highest quality.

  • With blocking and obstacle detection
  • automatic end position detection
  • VDE certification
  • Smooth, quiet operation
  • Automatic curtain length compensation
  • Can be connected in parallel without an isolating relay
  • pluggable connection cable
  • Overload protection
  • This tubular motor is exclusively suitable for use in roller shutters and roller doors.
  • To ensure a long service life, only rust-free, weather- and moisture-resistant materials are used.
  • Low stress on the curtain and the anchor point through continuous optimization of the anchor forces.
  • An integrated isolation relay allows multiple motors to be connected in parallel and operated via a controller or switch. The number of motors that can be connected depends on the load capacity of the interface and the fuse rating.
  • The connecting cable is attached to the motor via a plug connection and is replaceable; it is available in various designs and lengths.
  • In case of excessive heat generation (e.g., due to continuous operation), a thermal protection switch interrupts the power supply to the motor. Operation is possible again after cooling.
  • End position adjustment via switch on the drive head without a special adjustment set is possible.
    Space constraints make it possible
  • Rated torque: 5 Nm
  • Rated speed: 16 rpm.
  • Nominal voltage: 230 V
  • Frequency: 50Hz
  • Power consumption: 80W
  • Current consumption: 0.35A
  • Outer diameter: 35mm
  • Protection class IP44
  • Frequency 50Hz
  • Total length: 457 mm

Scope of delivery: 1 motor with connection cable
