Becker tubular drive P9-16-E18 9Nm


Price:
Sale price186,95€

Tax included plus Shipping Costs
Delivery time 1-3 Working Days DEUTSCHLAND AUSTRIA BENELUX

Stock:
In Stock - available immediately

Description

Becker Drives Logo

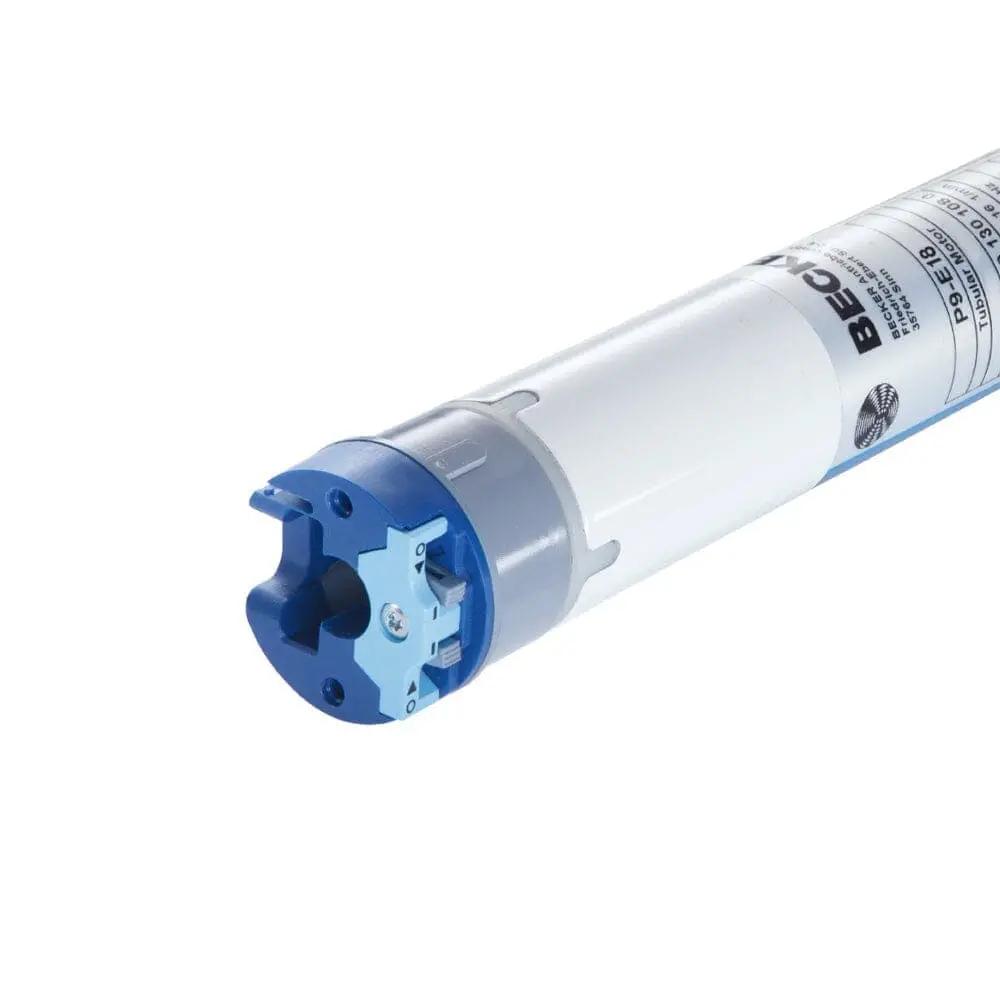

Becker tubular drive P9-16-E18 9Nm

20091301080

  • Sun protection drive with electronic limit switch
  • without radio
  • Application recommendation: Zip screen
  • Sensitive obstacle detection with multiple tests
  • Blockage detection with multiple tests
  • Fabric relief: The drive protects the fabric by relieving pressure in the upper stop end position - optionally deactivated/activated.
  • End position setting: Automatic detection when an upper stop is present and fixed point end position programming (top/bottom) is enabled.
  • End position adjustment via switch on the drive head without a special adjustment set is possible.
  • End position status indicator: The drive indicates the absence of an end position by briefly interrupting the journey.
  • Auto-install function: The drive programs the end positions automatically.
  • Plug-in connection cable
  • Can be connected in parallel
  • Suitable for right- and left-hand installation
  • Motor protected against overheating
  • Color: White RAL9016
  • Rated torque: 9 Nm
  • Rated speed: 16 rpm.
  • Nominal voltage: 230 V
  • Frequency: 50Hz
  • Power consumption: 110W
  • Current consumption: 0.45A
  • Outer diameter: 35mm
  • Switch-on time: S2 4 min
  • Protection class IP44
  • Weight: 1.20 kg
  • Total length: 506 mm
  • Made in Germany

    Scope of delivery: 1 motor with connection cable
