Becker pipe drive L80-11-E12 80Nm


Price:
Sale price269,95€

Tax included plus Shipping Costs
Delivery time 1-3 Working Days DEUTSCHLAND AUSTRIA BENELUX

Stock:
In Stock - available immediately

Description

Becker Drives Logo

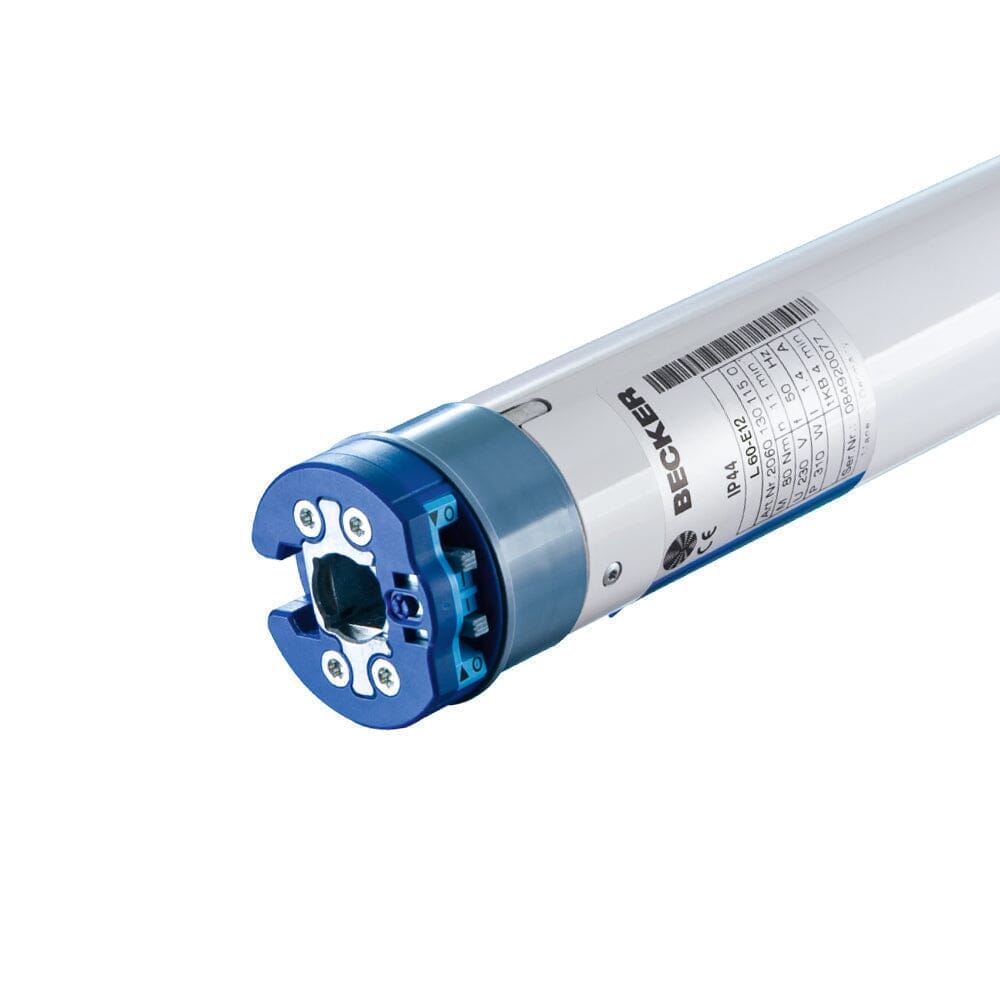

Becker tubular drive L80-11-E12

2080.130.146.0

  • Tubular motor without radio
  • Universal sun protection drives with electronic limit switch
  • Recommended applications: Pergola, conservatory awning, drop arm awning, insect screen, valances, markisolette, window awning, screen, roller blind, horizontal screen, cassette folding arm awning and open/semi-open folding arm awning
  • Blockage detection with multiple tests
  • Increased closing force for, e.g., cassette awnings
  • Fabric tensioning function: The drive tightens the fabric by moving to a freely adjustable reversing position - optionally deactivated/activated.
  • Fabric relief: The drive protects the fabric by relieving pressure in the upper stop end position - optionally deactivated/activated.
  • End position setting: Automatic detection when an upper stop is present and fixed point end position programming (top/bottom) is enabled.
  • Switchable stop behavior
  • Auto-install function: The drive programs the end positions automatically.
  • Electronic end-of-life shutdown
  • Plug-in connection cable
  • Automatic curtain length compensation
  • Can be connected in parallel without an isolating relay
  • Soft stop at the top - optimal adjustment of closing forces to protect the fabric.
  • Suitable for right- and left-hand installation
  • Motor protected against overheating
  • Size: Large (from SW 70)
  • Rated torque: 80 Nm
  • Rated speed: 11 rpm.
  • Nominal voltage: 230 V
  • Frequency: 50Hz
  • Power consumption: 310W
  • Current consumption: 1.4A
  • Outer diameter: 58mm
  • Protection class IP44
  • Weight: 4.4 kg
  • Total length: 603.3 mm
  • Made in Germany

Scope of delivery: 1 motor with connection cable
