Geiger Universal Joint 90° 22/85 11.9 SW6(300)


Price:
Sale price22,95€

Tax included plus Shipping Costs
Delivery time 1-3 Working Days DEUTSCHLAND AUSTRIA BENELUX

Stock:
In Stock - available immediately

Description

Geiger Antriebstechnik

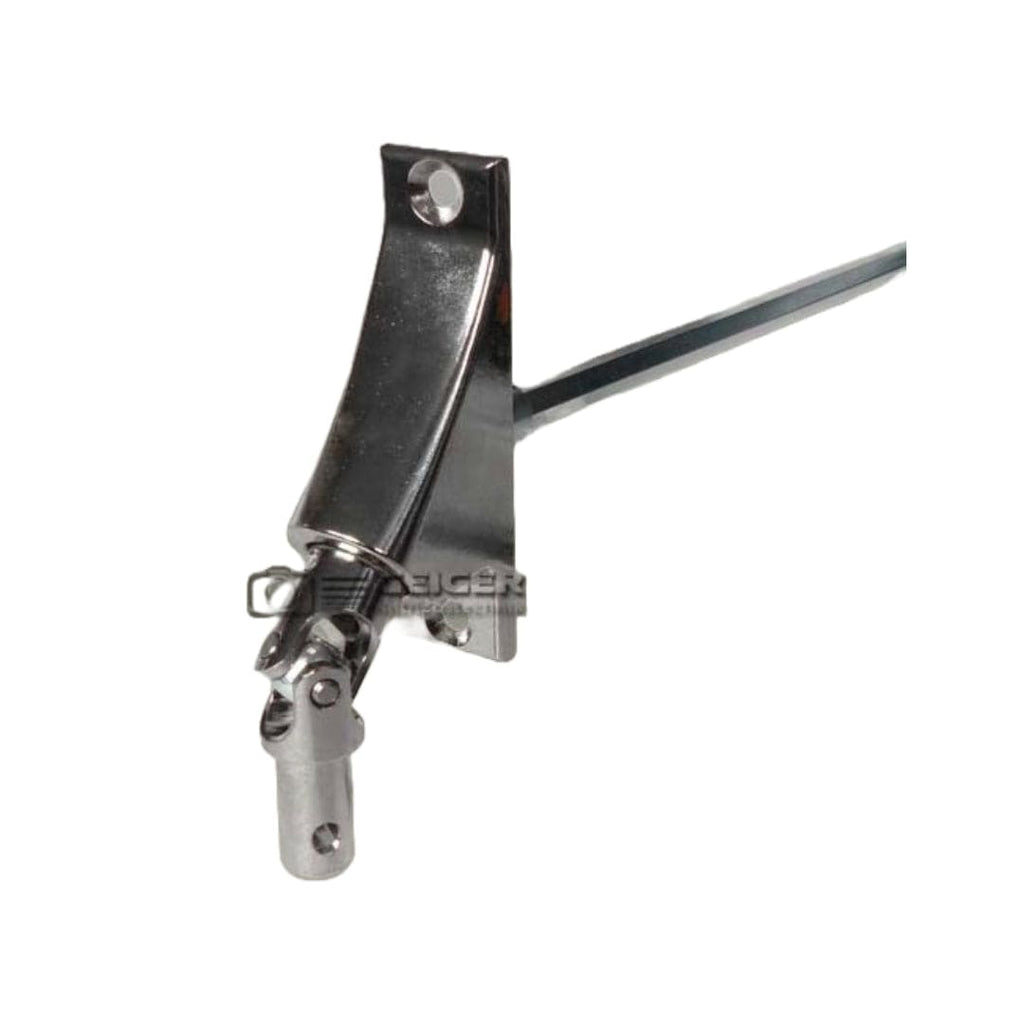

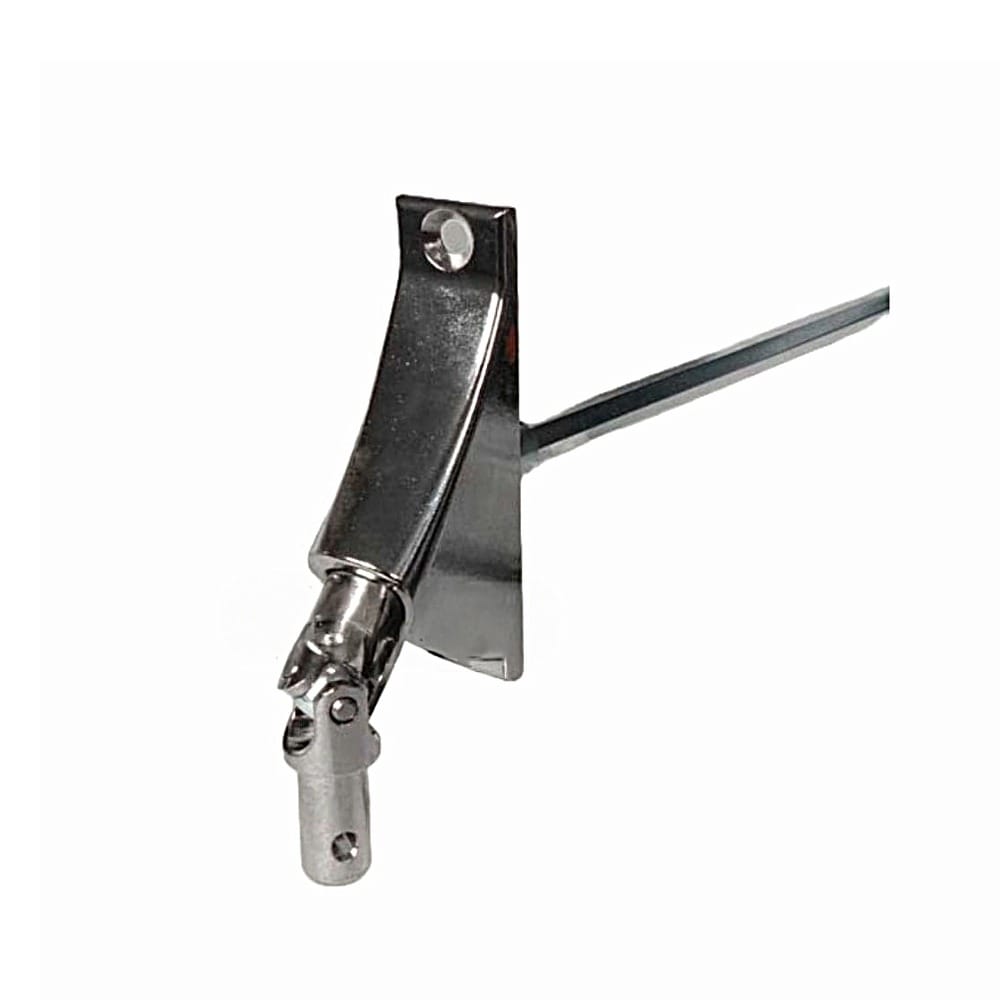

Geiger Articulated Bearing 90° 22/85 11.9 SW6(300)

816F161200

The articulated bearing from GEIGER is used to redirect the crank drive and as a wall bushing to the gearbox. The universal design of the 90° articulated bearing plate allows straight or angled deflection, even where the deflection angle required for operation is above the 45° deflection angle permissible for universal joints and articulated bearings. This is achieved by using a ball-bearing mounted double universal joint, which enables comfortable and durable operation at all deflection angles between 45° and 90°.

  • Articulated bearing Ø 16 mm
  • Deflection angle: up to 90°
  • Area of application: redirection of the crank drive and wall bushing to the gearbox
  • Max. torque: 3 Nm
  • Double universal joint made of steel (bright nickel-plated)
  • Connecting rod made of steel (bright nickel-plated)
  • Mounting plate made of die-cast zinc (bright nickel-plated)
  • Max. deflection: 90°
  • Diameter: 16 mm

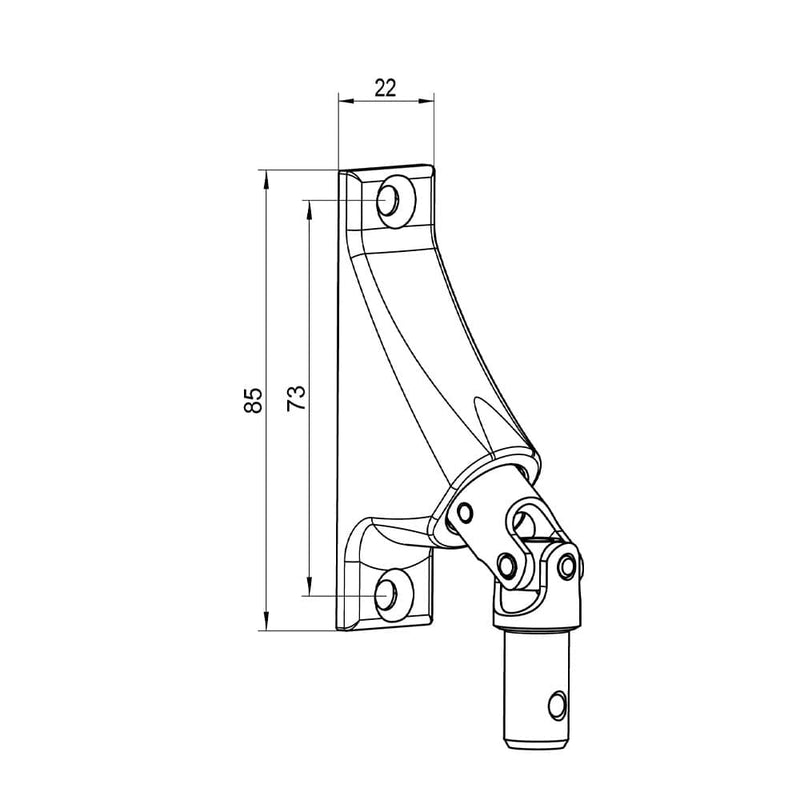

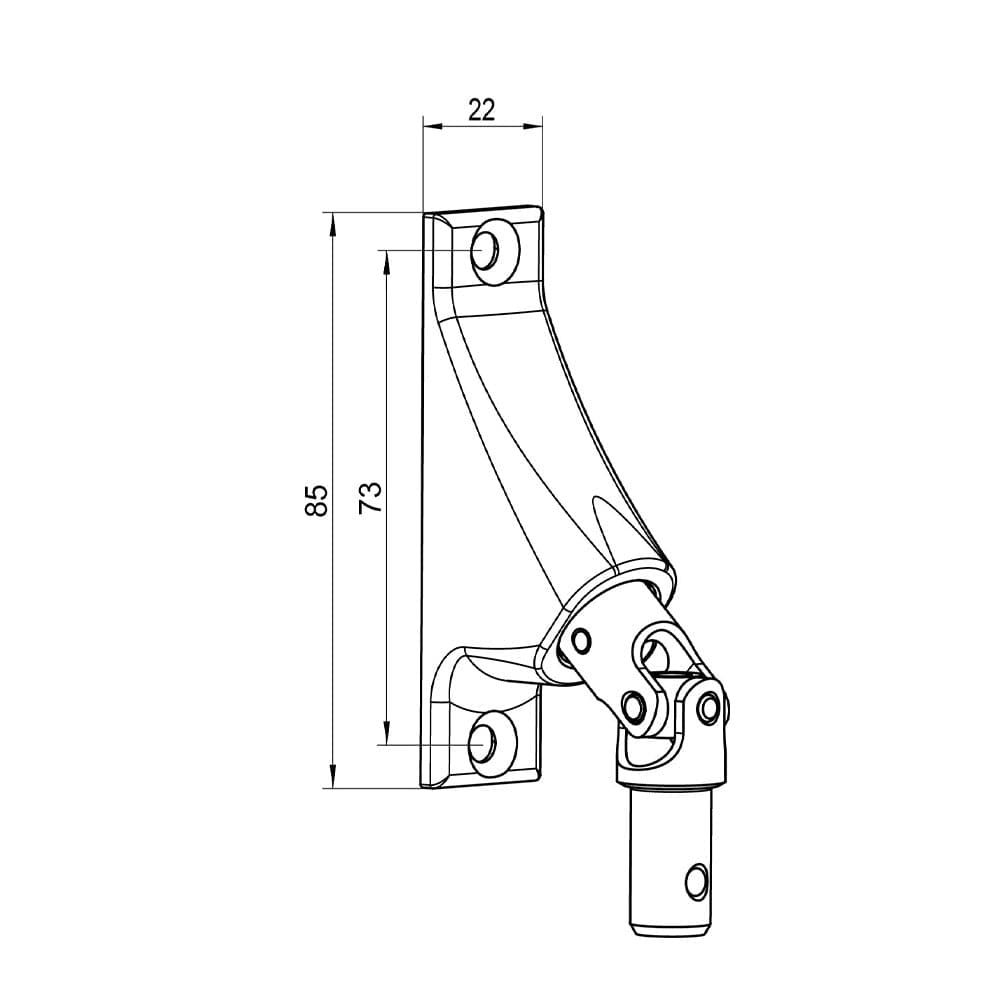

  • Mounting plate: 22 x 85 mm (2-hole)
  • Connection pin: 11.9 mm
  • Connecting rod: Hexagon 6 mm (length 300 mm)
  • Made in Germany
  • Material: Zinc and steel (bright nickel-plated)
  • Color: Silver

Scope of delivery: 1 piece
