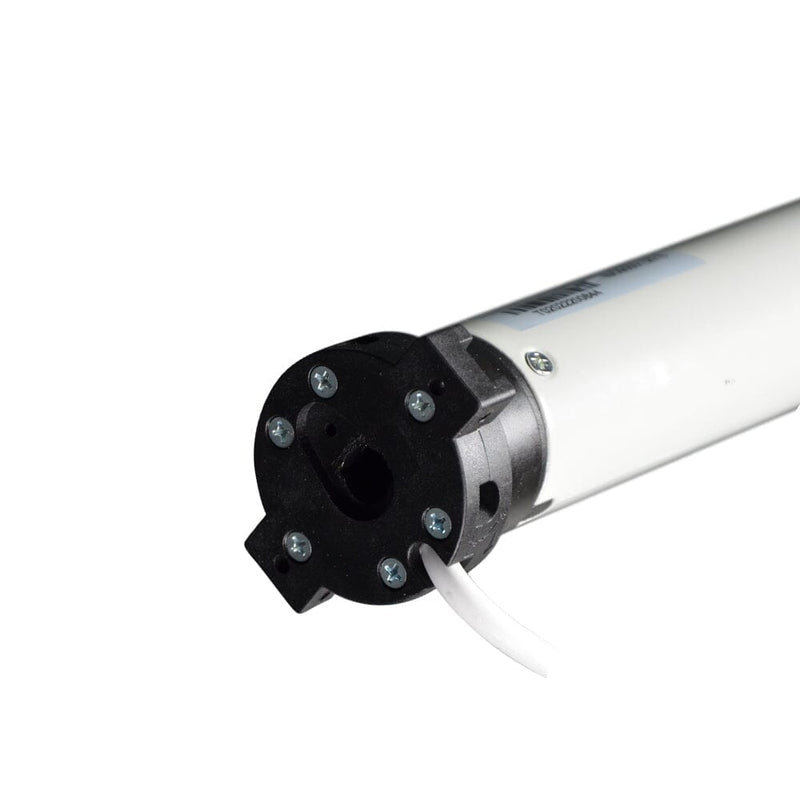

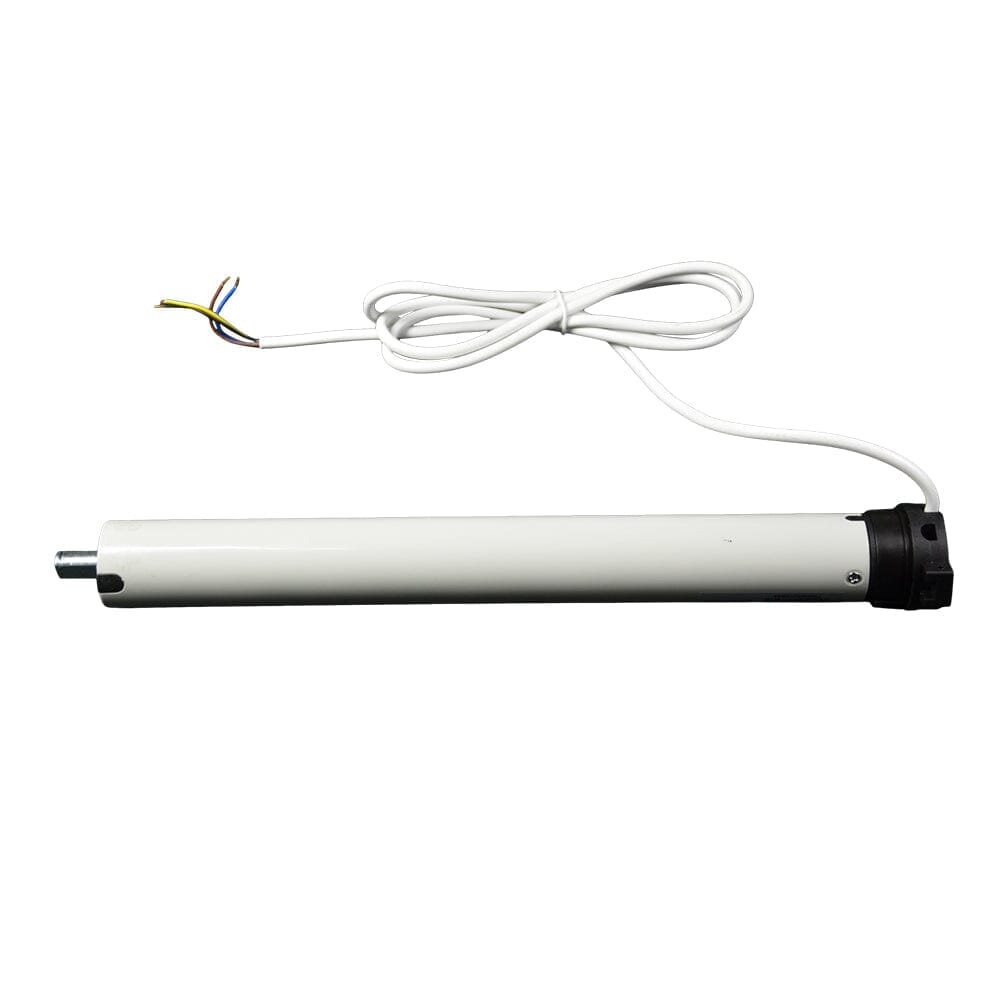

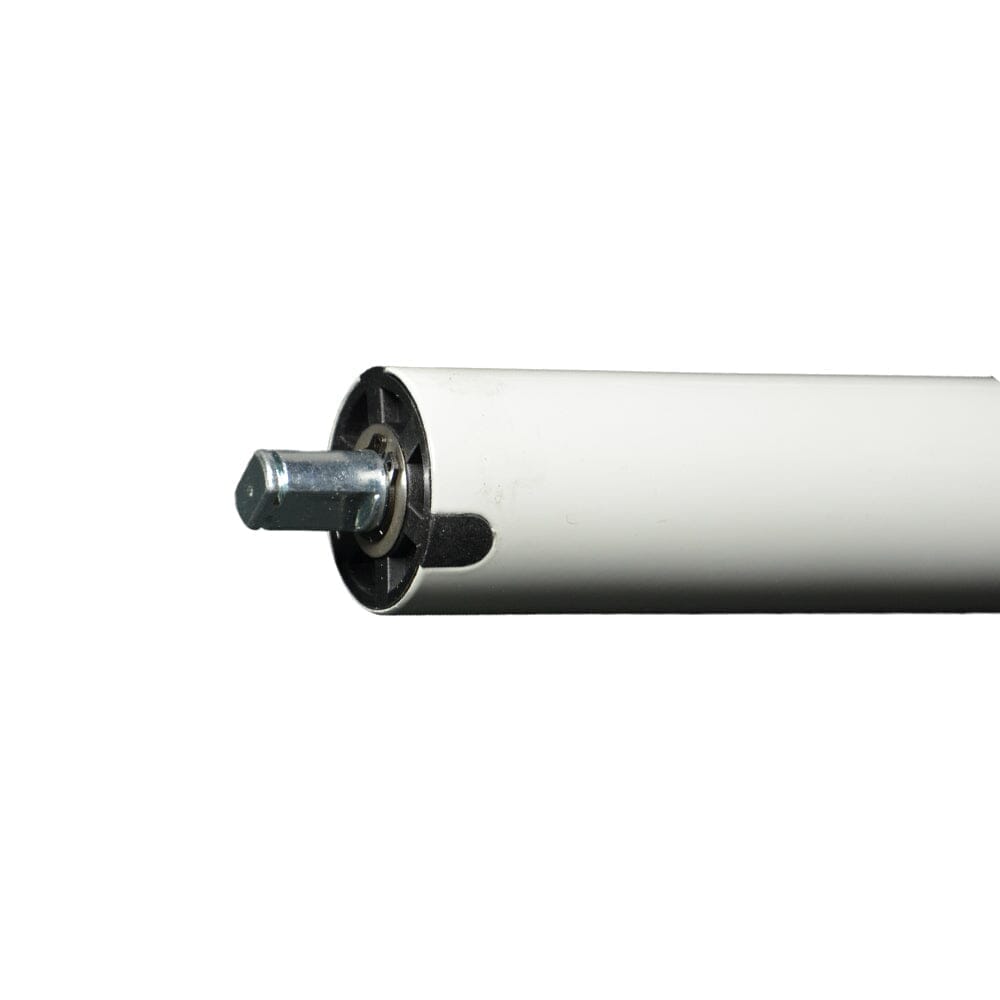

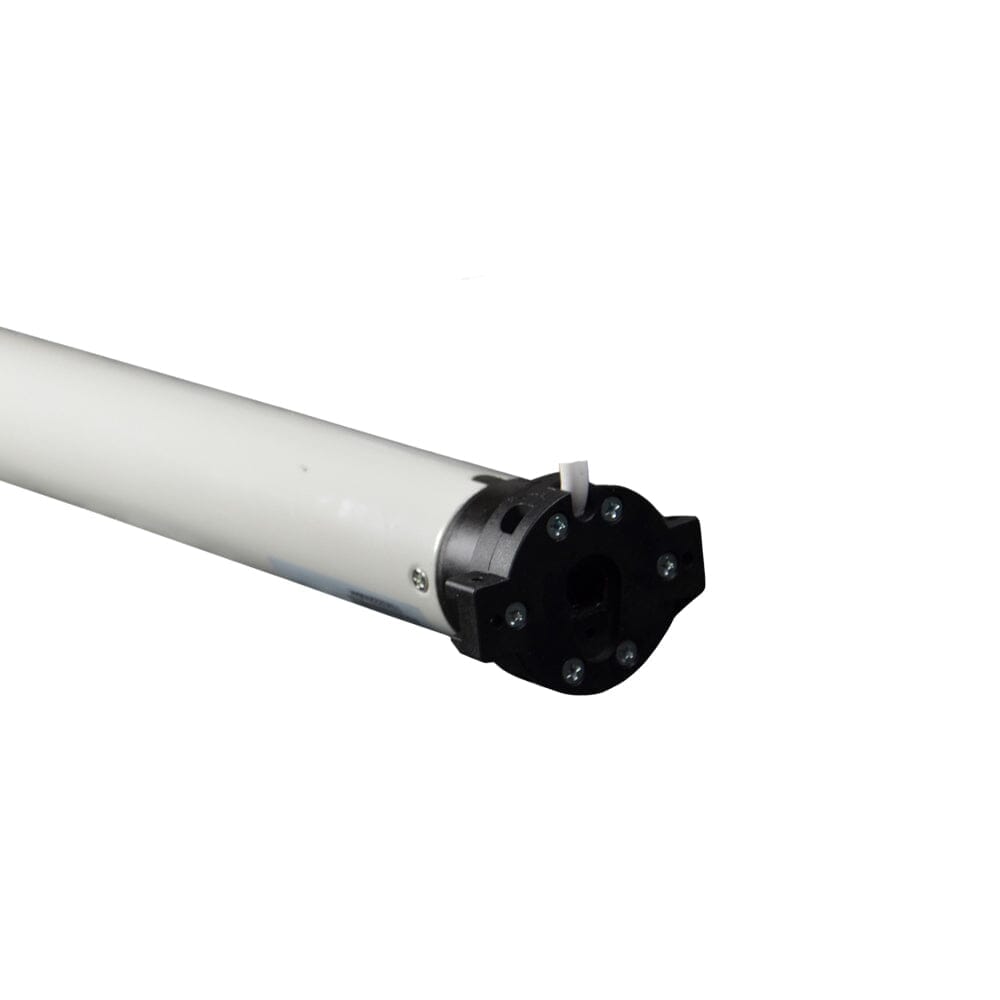

Aluprof roller shutter motor YYGL45S-20/17 SW 50,SW 60
JUALITE TUBULAR Asynchronous Motor
For external roller shutter systems: SK, SKE, SKP, SKO, SKO-P, SP, SP-E, SKT OPOTERM.
They are equipped with the so-called mechanical limit switching, which means that the positions in which the motor installed in the roller shutter stops are determined manually (with an adjustment key) at the drive head. The motors are suitable for an octagonal tube with the diameter of 40 shaft.
Used with shaft: SW 50,SW 60
Total length of the drive: 473 mm
Torque: 20Nm
Number of revolutions: 17min
Operating time: 4 min.
Rated current of the drive: 0,68 A
Power consumption: 156 W
Supply voltage: 230 V AC
Frequency: 50 Hz
Degree of protection: IP44
The set contains: Drive bearing, adapter and driver for steel shaft SW
