GEZE door closer TS 5000 white RAL9016 027335

GEZESKU: 110015

Price:
Sale price178,95€

Tax included plus Shipping Costs
Delivery time 1-3 Working Days DEUTSCHLAND AUSTRIA BENELUX

Stock:
In Stock - available immediately

Description

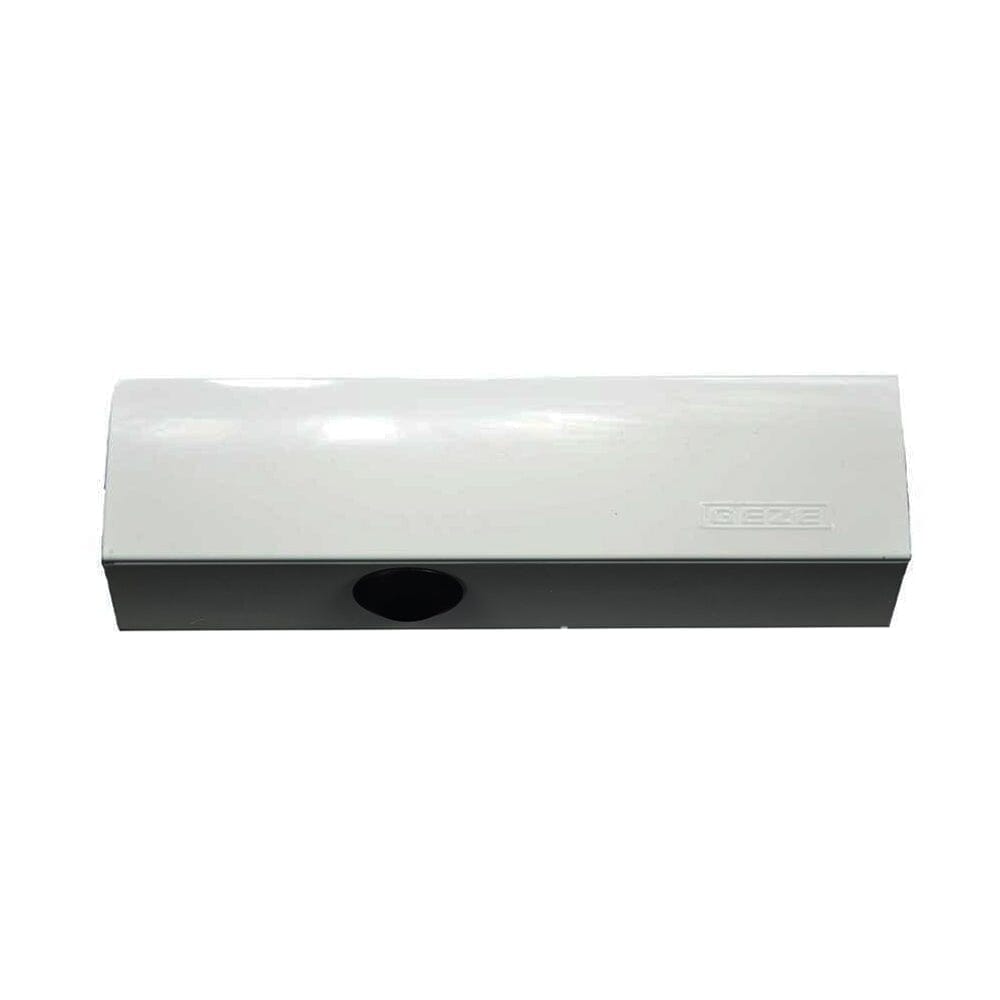

GEZE door closer TS 5000 white RAL9016 without guide rail

027335

This overhead door closer for single-leaf doors features clean lines. It is approved for installation on fire and smoke protection doors.

  • Slide rail door closer for single-leaf doors up to 1400 mm leaf width
  • Infinitely adjustable closing force from EN2-6
  • Suitable for right- and left-hinged doors without modification.
  • Hydraulic end stop that accelerates the door just before it closes.
  • Closing speed can be individually adjusted.
  • Integrated opening damper slows down doors that are opened too forcefully.
  • Optical closing force indicator for easy checking of the setting
  • All functions adjustable from the front.
  • Closing force according to EN 1154: EN 2 - 6
  • Barrier-free according to DIN 18040 up to a sash width (max.) in mm: 1100 mm
  • Wing width (max.): 1400mm
  • Mounting type: Door leaf mounting on hinge side, head mounting on opposite hinge side
  • Opening angle (max.): 180°
  • Suitability of fire doors: Yes
  • Adjustable closing force: Yes, stepless
  • Adjustable closing speed: Yes
  • Adjustable end stop: Yes, via valve
  • Integrated opening damping: Yes, hydraulically adjustable
  • Position of closing force adjustment: Front
  • Optical indication of closing force: Yes
  • Note: Optional
  • Integrated smoke detector: No
  • Color: RAL9016 White

Areas of application:

  • Fire and smoke protection doors
  • Right and left hinged doors
  • Hinged doors up to 1400 mm leaf width
  • Door leaf mounting on the hinge side and head mounting on the opposite side

Scope of delivery: 1 piece without sliding rail and without mounting plate
