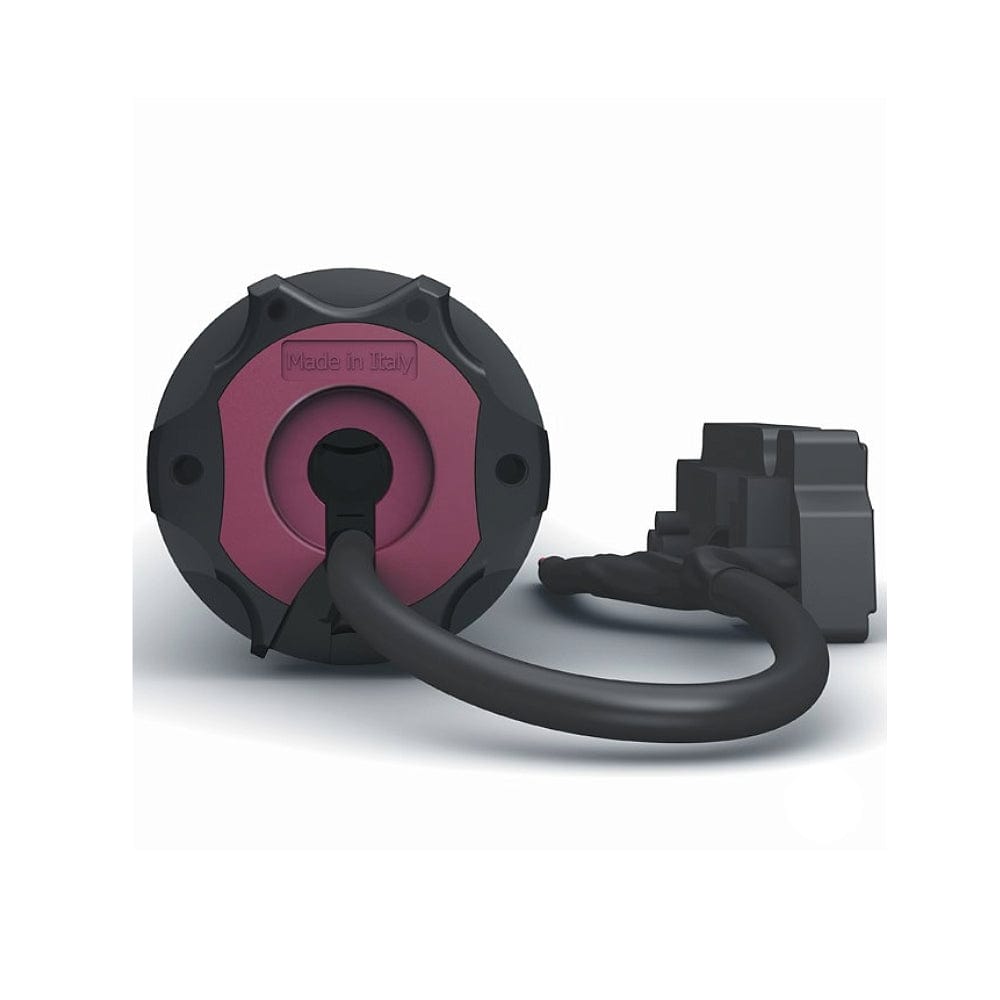

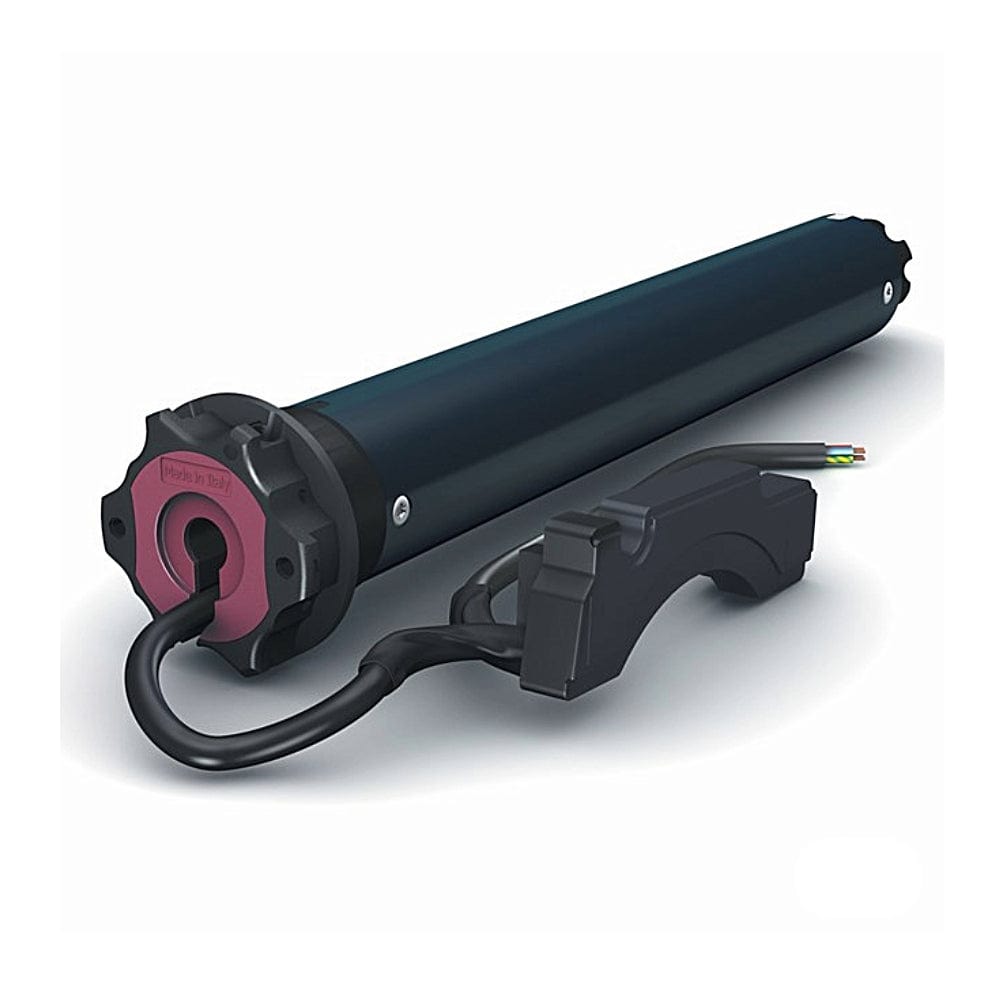

Cherubini radio roller shutter motor P&P RX Short 6/17 6Nm

CEX45061710

• Radio roller shutter motor with obstacle detection
• Continuous self-learning: Optimization of the end positions thanks to constant reading of the torque during the roller shutter movement
• Electronic repository setting with integrated radio receiver and wired
• Automatic adjustment of the end positions
• Freeze protection and obstacle detection in upward and downward movement with
• Return exemption
• Periodic release on the end positions
• Possibility of a direct parallel connection
• This motor can be used for all roller shutters

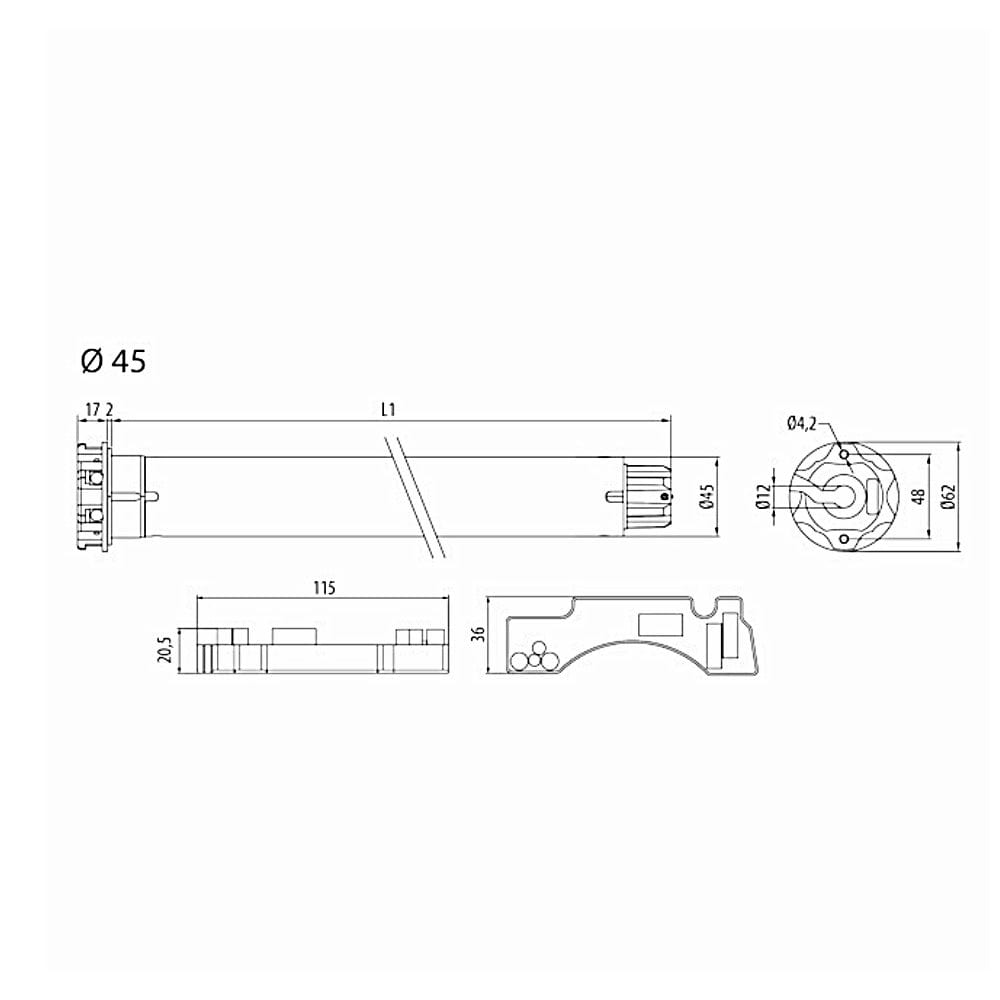

• Diameter: Ø45 mm
• Suitable for SW60
• Torque : 6 Nm

• Speed : 17 rpm
• Power : 110 W

• Voltage (v/Hz) : 230/50
• Current consumption : 0.5 A

• Cable length: 2.5 m
• Operating time (min) : 4
• Protection class : IP44

• Length: 343 mm

• Color: Black Red
• Material: steel and plastic

Note: This motor with obstacle detection can only be operated with rigid shaft connectors and stop stop.

Scope of delivery: 1 motor with connecting cable (without adapter, driver, bearing)
