Cherubini radio tubular motor Senso RX 25/17 25Nm

CEA45251700

• Tubular motor for roller blinds and screens
• Radio motor with radio receiver
• Simple and finely graduated adjustment of the end positions via the hand-held transmitter
• Easy programming and operation; all setting operations are confirmed by small rotations of the motor
• Possibility of setting a middle position
• The "super sensitivity" function of the blockage detection during downward movement can be activated via hand-held transmitter and can be set to 3 different levels
• Blockage detection in the OPEN direction, sensitivity adjustable to 3 levels
• Torque cut-off for cassette awnings

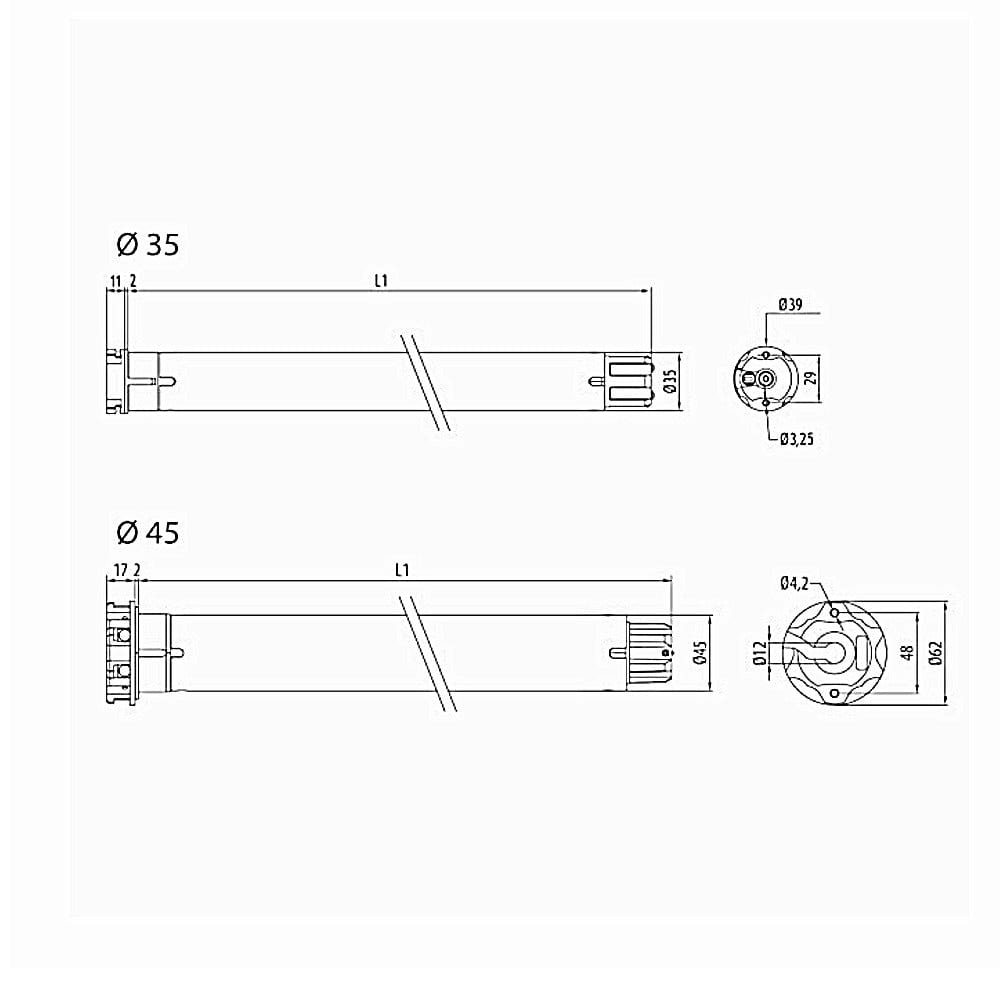

• Diameter: Ø45 mm
• Suitable for: SW50 and SW 60
• Torque: 25 Nm
• Speed: 17 rpm
• Power: 225 W
• Voltage (v/Hz): 230/50
• Current consumption: 1.00 A
• Cable length: 5 m

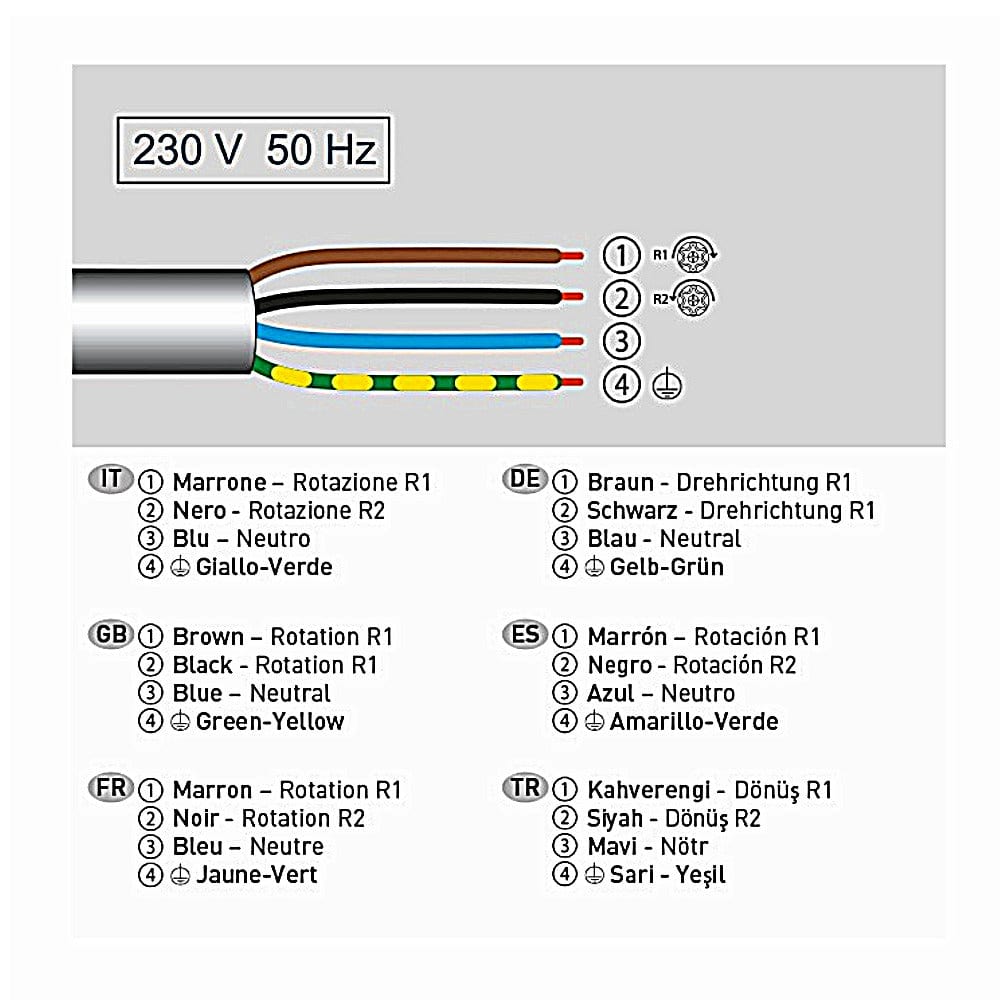

• Number of cable cores: 4
• Operating time (min): 4
• Protection class: IP44

• Length: 543 mm
• Color: Black Red Blue
• Material: steel and plastic

• Made in Italy

Scope of delivery: 1 motor with connecting cable (without adapter, driver, bearing)
